Complies with the requirements of the BMVI recommendation for turning assistants.
Detection area of at least 2.5 m x 6 m Can be activated via direction indicator (turn signal) and speed (GPS). Adjustable speed range.
Differentiation between moving objects such as cyclists and static objects (such as parked cars, etc.)
Two-stage warning: purely optical for cyclists in the danger zone and additional acoustic warning through blinker activation and/or steering angle
Driver information in the event of a malfunction (e.g. defective camera)
A general operating permit (ABE) has been issued by the Federal Motor Transport Authority (KBA), irrespective of the vehicle type. However, a mounting area for the camera sensors must be observed:
Minimum mounting height of 1.80 m (maximum 4 m) Distance to the front of the vehicle min. 1 m/max. 6 m
However, a mounting area for the camera sensors must be observed:
- Minimum mounting height of 1.80 m (maximum 4 meters) - Distance to the front of the vehicle min. 1 meter/max. 6 meters
External alarms (e.g. an LED warning light, side marker lights) can be activated via an additional control output (I/O).

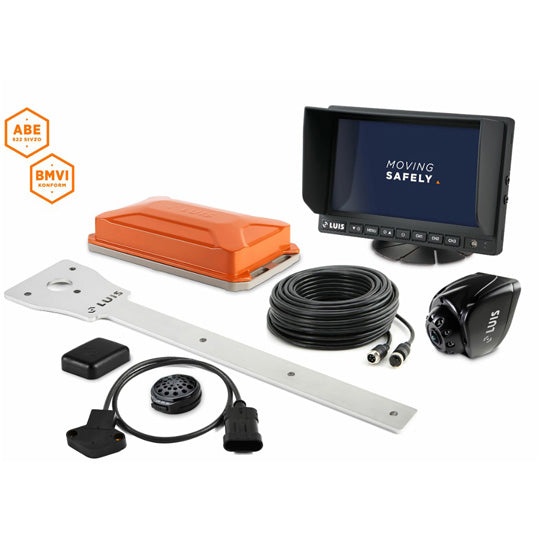

The system includes a wide-angle camera, the control box, a GPS module, a buzzer, a steering angle sensor, a camera holder as well as the LUIS 7" Monitor Professional and the necessary cables.
The calibration box (article no. 245559220) is required for professional calibration and is available separately as an accessory.
The LUIS "TURN DETECT®" turn-off assistant is purely an information and warning system that merely supports the driver of a vehicle. At no time and in no way does the system take over or replace the duties and functions of a vehicle driver. The driver of the vehicle remains fully responsible for driving the vehicle, fulfilling their road safety obligations and complying with legal road safety requirements.
Once the system has been installed, it must be approved by a technical inspection body.
The scope of delivery includes: 1 x LUIS Turn Detect® V2.1 ECU (item no. 245559420) 1 x LUIS TD150 camera (item no. 245559257) 1 x LUIS camera cable, length 5 m (item no. 245559272) 1 x LUIS GPS module 2.0 (item no. 245559500) 1 x LUIS controller (item no. 245559419) 1 x LUIS 2-PIN buzzer (item no. 245559300) 1 x LUIS 7" Monitor Professional, Auto Dim (item no. 245559339) 1 x LUIS Turn Detect® 2.0 camera mount (item no. 245559301) 1 x LUIS Turn Detect® system cable (item no. 245559622) 1 x LUIS steering angle sensor (item no. 245559418) 1 x LUIS monitor mount
