The LUIS TURN DETECT® complies with the requirements of the BMVI recommendation for turn assistants:
Detection area of at least 2.5 m x 6 m. Can be activated via direction indicator (turn signal) and speed (GPS). Adjustable speed range. Differentiation between moving objects such as cyclists and static objects (such as parked cars, etc.). Two-stage warning: purely optical for cyclists in the danger zone and additional acoustic warning through blinker activation. Driver information in the event of a malfunction (e.g. defective camera).
A general operating permit (ABE) has been issued by the Federal Motor Transport Authority (KBA), irrespective of the vehicle type. However, a mounting area for the camera sensors must be observed:
Minimum mounting height of 1.80 m (maximum 4 m). Distance to the front of the vehicle min. 1 m/max. 6 m.
External alarms (e.g. an LED warning light, side marker lights) can be activated via an additional control output (I/O).

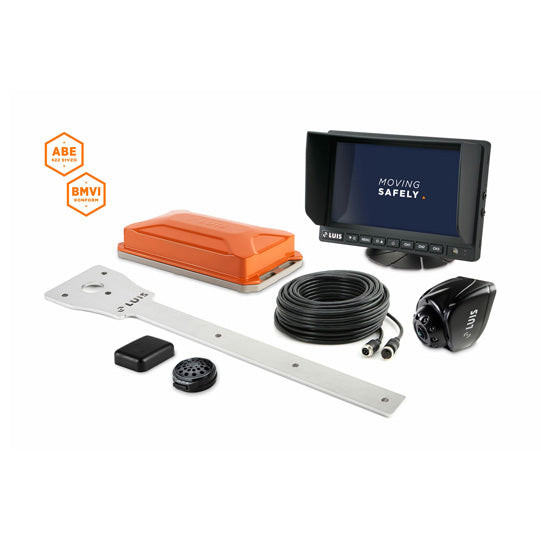

The system includes a wide-angle camera, the control box, a GPS module, a buzzer, a camera holder as well as the LUIS 7" Monitor Professional and the necessary cables.
The calibration box (article no. 245559220) is required for professional calibration and is available separately as an accessory.
The LUIS "TURN DETECT®" turning assistant is purely an information and warning system that merely supports the driver of a vehicle. At no time and in no way does the system take over or replace the duties and functions of a vehicle driver. The driver of the vehicle remains fully responsible for driving the vehicle, fulfilling their road safety obligations and complying with legal road safety requirements. Once the system has been installed, it must be approved by a technical inspection body.
The scope of delivery includes: 1 x LUIS Turn Detect® V2.1 ECU (article no. 245559420) 1 x LUIS camera TD150 (article no. 245559257) 1 x LUIS camera cable, length 5 m (article no. 245559272) 1 x LUIS GPS module 2.0 (article no. 245559500) 1 x LUIS controller (article no. 245559419) 1 x LUIS 2-PIN Buzzer (article no. 245559300) 1 x LUIS 7" Monitor Professional, Auto Dim (article no. 245559339) 1 x LUIS Turn Detect® 2.0 camera holder (article no. 245559301) 1 x LUIS Turn Detect® system cable (article no. 245559622) 1 x LUIS monitor holder
