The LUIS TURN DETECT® complies with the requirements of the BMVI recommendation for turn assistants:- Detection area of at least 2.5 m x 6 m- Can be activated via direction indicator (turn signal) and speed (GPS). Differentiation between moving objects such as cyclists and static objects (such as parked cars, etc.)- Two-stage warning: purely optical for cyclists in the danger zone and additional acoustic warning through blinker activation and/or steering lock- Driver information in the event of a malfunction (e.g. defective camera)A general operating permit (ABE) has been issued by the Federal Motor Transport Authority (KBA), irrespective of the vehicle type. However, a mounting range of the camera sensor system must be observed:- Minimum mounting height of 1.80 m (maximum 4 meters)- Distance to the front of the vehicle min. 1 meter /max. 6 metersExternal alarms (e.g. an LED warning light, side marker lights) can be activated via an additional control output (I/O)The system includes a wide-angle camera, the control box, a GPS module, a buzzer and the necessary cables.The calibration box (article no. 245559220) is required for professional calibration; this is available separately as an accessory. It goes without saying that all components of the LUIS TURN DETECT® turn-off assistant undergo the comprehensive and strict quality assurance process with 100% routine testing in all key production steps.
The LUIS "TURN DETECT®" turn-off assistant is purely an information and warning system that merely supports the driver of a vehicle. At no time and in no way does the system take over or replace the duties and functions of a vehicle driver. The driver of the vehicle remains fully responsible for driving the vehicle, fulfilling their road safety obligations and complying with the legal road safety requirements.

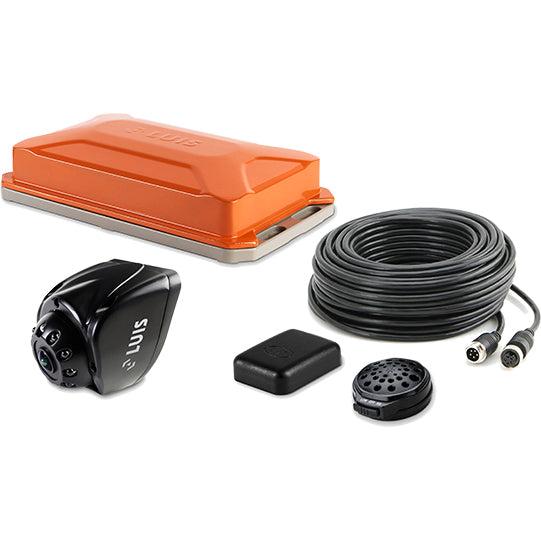

Included in delivery:1 x LUIS Turn Detect® V2.1 ECU (item no. 245559420)1 x LUIS TD150 camera (item no. 245559257)1 x LUIS camera cable, length 5 m (item no. 245559272)1 x LUIS GPS module 2.0 (item no. 245559500)1 x LUIS controller (item no. 245559419)1 x LUIS 2-PIN buzzer (item no. 245559300)1 x LUIS Turn Detect® system cable (item no. 245559622)
An optical warning device (item no. 245559421) can be ordered as an option.
