S-Line® combination anchor channel 3009-FL, galvanised stl., 30

S-Line® combination anchor channel 3009-FL, galvanised stl., 30

142138852

⚖️ 6,5 kg

Login view prices

Description

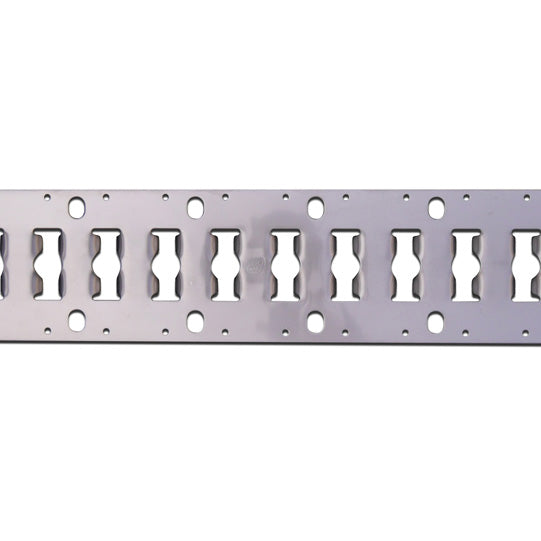

S-Line® combination anchor channel 3009-FL, galvanised steel, for horizontal wall mounting, length 3048 mm, compatible with combination spigot Ø 19/24 mm and combination anchor channel end fittings for lashing straps

Attributes

Adhesive channel No
Countersunk holes No
Hole diameter 25.0
Installation area Horizontal wall
Lc value at 45 grad angle 1000.0
Lc value at 90 grad angle 1000.0
Length 3048.0
Material Steel
Material thickness 2.5
Surface Galvanized
Width 130.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
