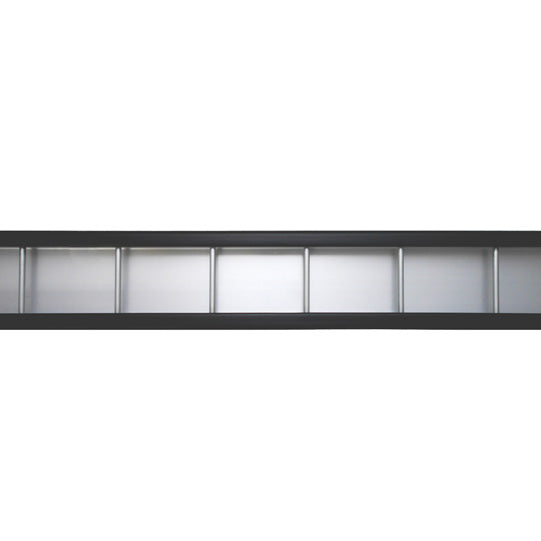

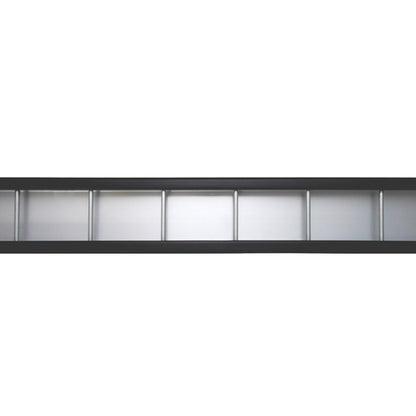

S-Line® rod anchor channel 3117-AL, anodised, w/ rubber coating

S-Line® rod anchor channel 3117-AL, anodised, w/ rubber coating

142138636

⚖️ 8,9 kg

Login view prices

Description

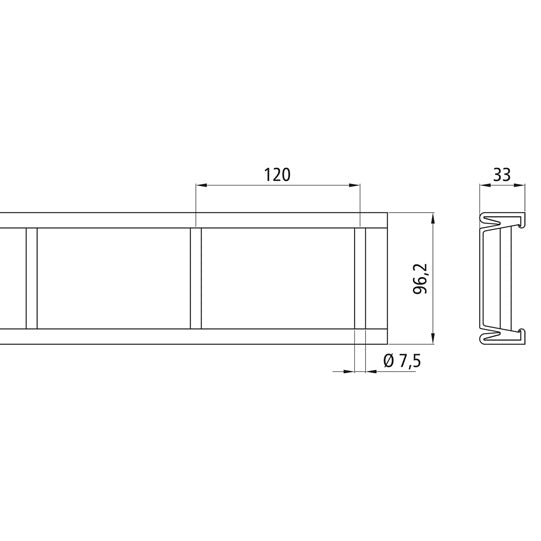

S-Line® rod anchor rail 3117-AL, aluminum anodised, with rubber coating and adhesive channel, for horizontal wall mounting, length 6000 mm, compatible with combination spigotØ 19/24 mm with slot 9 mm, all fabric straps up to50 mm and lashing strap end fitting for rod anchor rail

Attributes

Adhesive channel Yes
Countersunk holes No
Installation area Horizontal wall
Lc value at 45 grad angle 350.0
Lc value at 90 grad angle 350.0
Length 6000.0
Material Aluminum
Surface Anodized
Width 96.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
