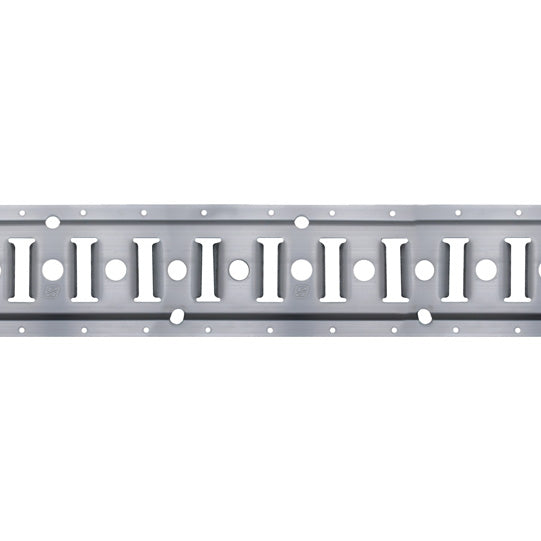

S-Line® slotted-hole anchor channel 3008-AL, aluminum, 3000 mm

S-Line® slotted-hole anchor channel 3008-AL, aluminum, 3000 mm

142138826

⚖️ 2,8 kg

Login view prices

Description

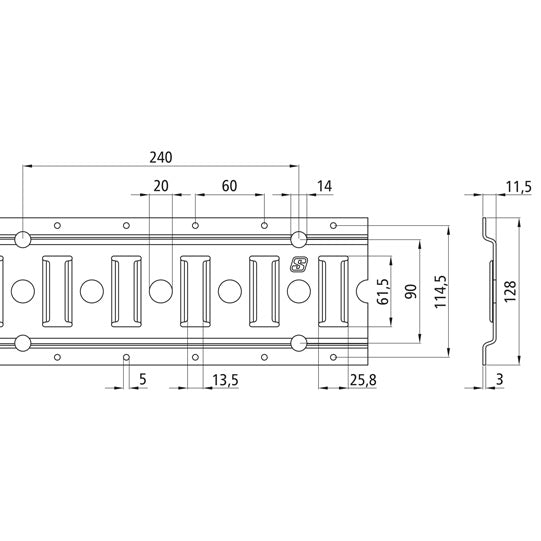

S-Line® slot-and-hole anchor channel 3008-AL, aluminum, for horizontal wall mounting, length 3000 mm, compatible with combination spigotØ 19/24 mm and combination anchor channel end fittings for lashing straps

Attributes

Adhesive channel No
Countersunk holes No
Hole diameter 20.0
Installation area Horizontal wall
Lc value at 45 grad angle 500.0
Lc value at 90 grad angle 500.0
Length 3048.0
Material Aluminum
Material thickness 3.0
Surface Blank
Width 128.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
