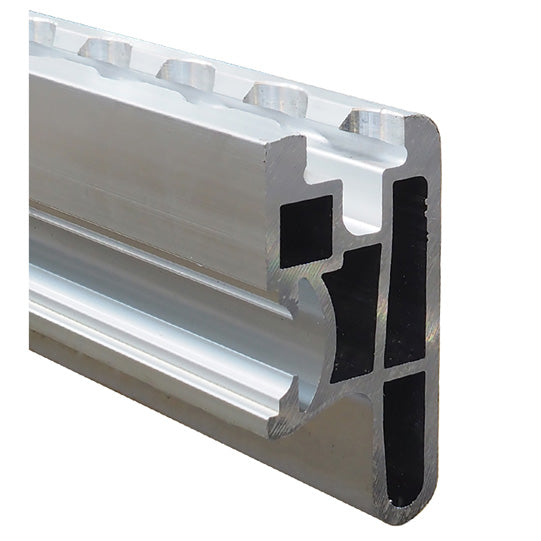

Aluminium combi bumper w/ airline duct, w/ milling, mill finish

Aluminium combi bumper w/ airline duct, w/ milling, mill finish

535644007

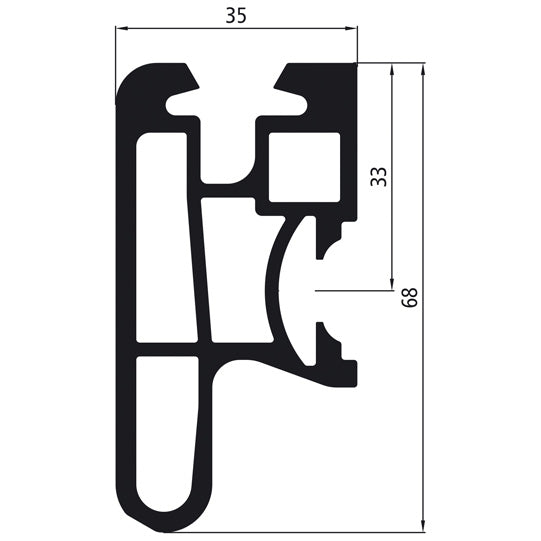

Drawing no: 00 507 021

⚖️ 2,156 kg /m

€424,40
€424,40

Kuvaus

aluminum Combined impact protection with airline channel, with airline milling, mill finish, 7600 mm bearing length

Muistiinpanoja

With cavity for M 8 truss-head bolt in accordance with DIN 603 and groove for plug-on planks and pallet stop bars. The combi ram guard with airline system can accommodate all airline fittings, lashing straps and load beams with airline fitting end fittings (flat), as well as locking beams with Ø 19 mm pins. Suitable for superstructures with side boards where the side board hinge radius is at least 38 mm.
