S-Line Airline profilankarskena 4010, 3000 mm

S-Line Airline profilankarskena 4010, 3000 mm

142139026

⚖️ 5,58 kg

Anmelden um Preise anzuzeigen

Beskrivning

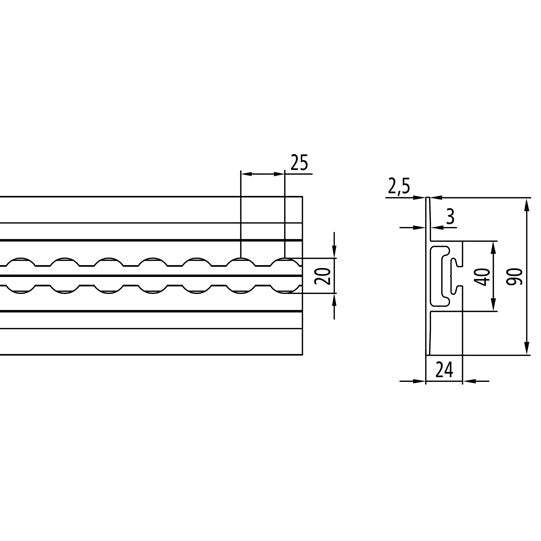

S-Line Airline profilförankringsskena 4010, 3000 mm; anodiserad aluminium, hål-Ø 20 mm, 25 mm avstånd, nedre vinge, 24 mm hög, inget försänkt hål, BLC ∡90° och ∡45°: 1000 daN med ändbeslag 571, för golvmontering, kompatibel med kombinationsavlopp Ø 19/24 mm och alla Airline ändbeslag

Attribut

Adhesive channel No
Countersunk holes No
Flat eyelet profile 0
Height 24.0
Hole diameter 20.0
Installation area Floor
Lashing rail profile 0
Lc value at 45 grad angle 1000.0
Lc value at 90 grad angle 1000.0
Length 3000.0
Material Aluminium
Profile with airline system 0
Side wall lifting aid 0
Surface Anodiserad

Produktsäkerhet

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
