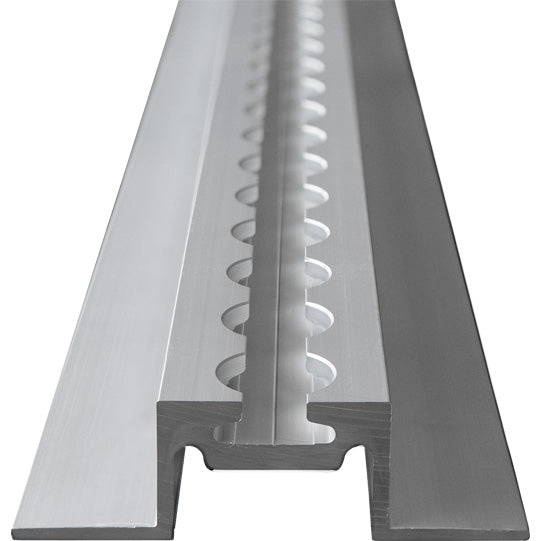

Airline-AS, Al/el, 430SF-09, 27×90×8000-3-o.B.-20×25

Airline-AS, Al/el, 430SF-09, 27×90×8000-3-o.B.-20×25

142140289

⚖️ 12,52 kg

Login view prices

Description

S-Line® Airline AnchorRail 430SF-09 - Airline anchor rail● Profile dimensions: 27 × 90 × 8000 mm● Material: aluminium● Surface: anodized● Profile shape: wing at the bottom● Mounting pin/fittings: Ø 20 in 25 mm grid● Load capacity: 800 daN LC maximum in accordance with DIN 12642● Load capacity: 2000 daN BC maximum in accordance with VDI 2700 Sheet 3.2● Fixing hole: without hole

Attributes

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
