Airline insert profile 6001, aluminum anodised, 3600/100 mm

Airline insert profile 6001, aluminum anodised, 3600/100 mm

142138864

⚖️ 5,65 kg

Login view prices

Description

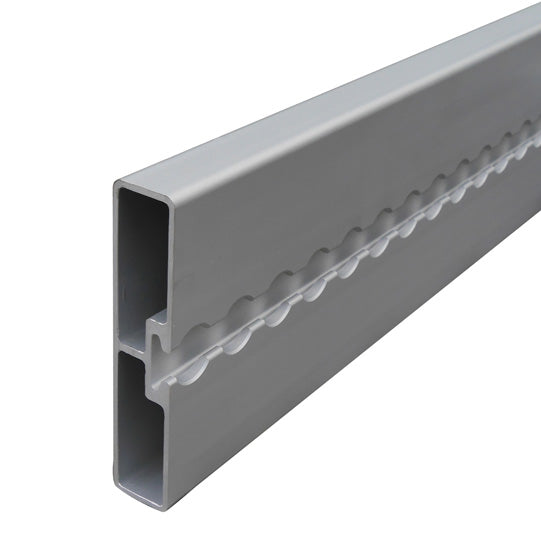

S-Line® Airline insertion profile 6001, 3600 mm long, aluminum anodised, 100 mm, suitable for insertion and stanchion pockets, compatible with combination spigot Ø 19/24 mm and all airline end fittings

Attributes

Adhesive channel No
Countersunk holes No
Flat eyelet profile 0
Height 100.0
Hole diameter 20.0
Lashing rail profile 0
Lc value at 45 grad angle 1000.0
Lc value at 90 grad angle 1500.0
Length 3600.0
Material Aluminum
Profile with airline system 0
Side wall lifting aid 0
Surface Anodized
Width 25.0
