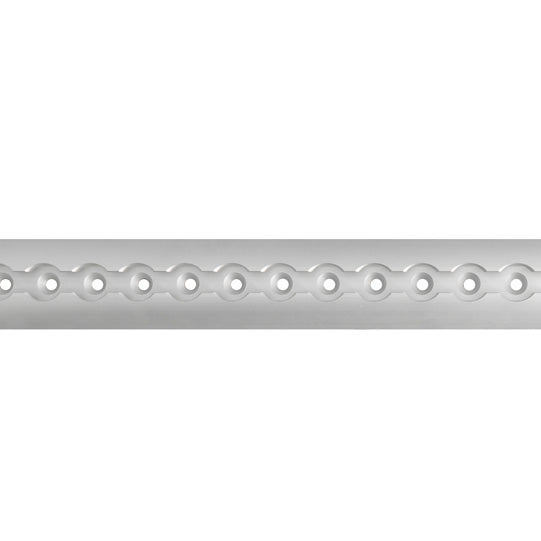

Airline profile anchor rail 4001-AL, aluminum anodised, 6000 mm

Airline profile anchor rail 4001-AL, aluminum anodised, 6000 mm

142138953

⚖️ 4,12 kg

Login view prices

Description

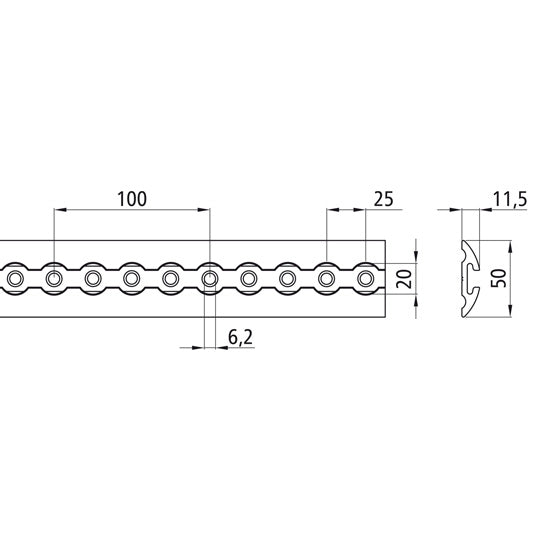

S-Line®Airline profile anchor channel 4001-AL,aluminum anodised,6000 mm, semicircular, countersunk holes,adhesive channel,compatible with combination spigots Ø 19/24 mm, airline end fittings and hinged drawer beams 142138521 and 142138522

Attributes

Adhesive channel Yes
Countersunk holes Yes
Flat eyelet profile 0
Hole diameter 20.0
Installation area Wall vertical/horizontal - Floor
Lashing rail profile 0
Lc value at 45 grad angle 1000.0
Lc value at 90 grad angle 1500.0
Length 6000.0
Material Aluminum
Profile with airline system 0
Side wall lifting aid 0
Surface Anodized
Width 50.0
