Airline profile anchor rail 4009-VK, 6000 mm, aluminum

Airline profile anchor rail 4009-VK, 6000 mm, aluminum

142138893

⚖️ 4,2 kg

Login view prices

Description

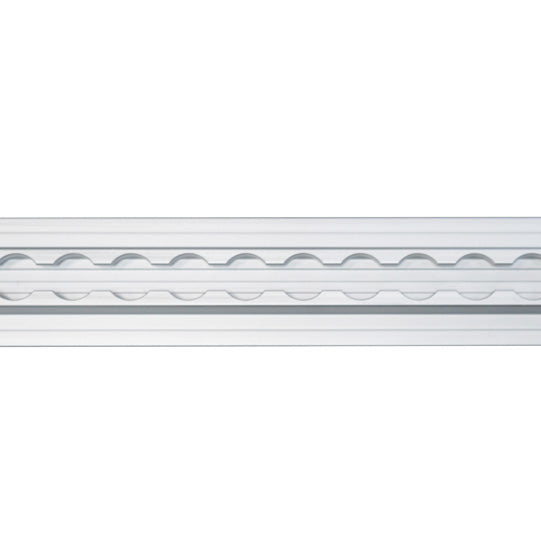

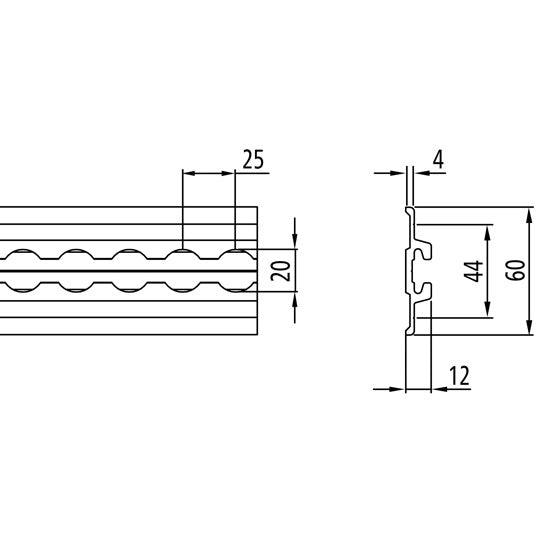

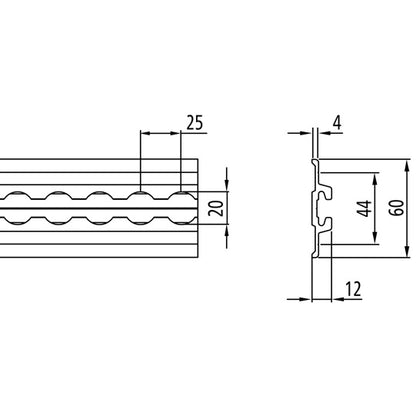

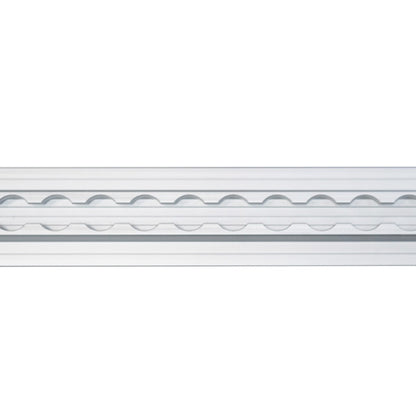

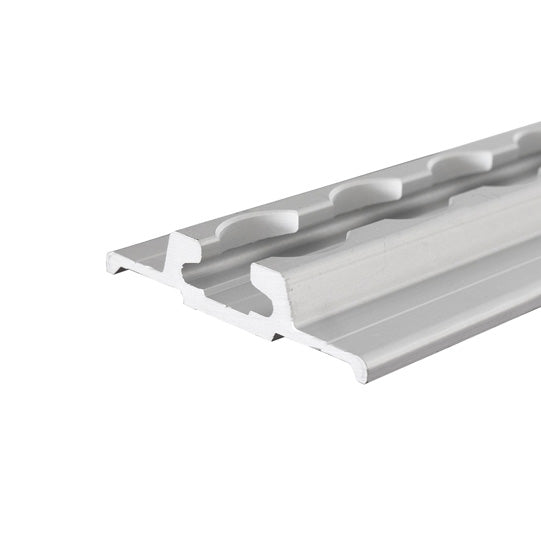

S-Line® Airline profile anchor channel 4009-VK, 6000 mm,aluminum anodised, hole Ø 20 mm, 25 mm spacing, bottom wing with adhesive channel, 60 mm wide, no fixing holes in the wings, BLC ∡90°; ∡45°: 1000 daN with end fitting 571, for floor, ceiling, horizontal and vertical wall mounting, compatible with Ø19/24 mm combination spigots, all Airline end fittings and articulated shutter beams 142138510

Attributes

Adhesive channel Yes
Countersunk holes No
Flat eyelet profile 0
Hole diameter 20.0
Installation area Wall vertical/horizontal - Floor - Ceiling
Lashing rail profile 0
Lc value at 45 grad angle 1000.0
Lc value at 90 grad angle 1000.0
Length 6000.0
Material Aluminum
Profile with airline system 0
Side wall lifting aid 0
Surface Anodized
Width 60.0
