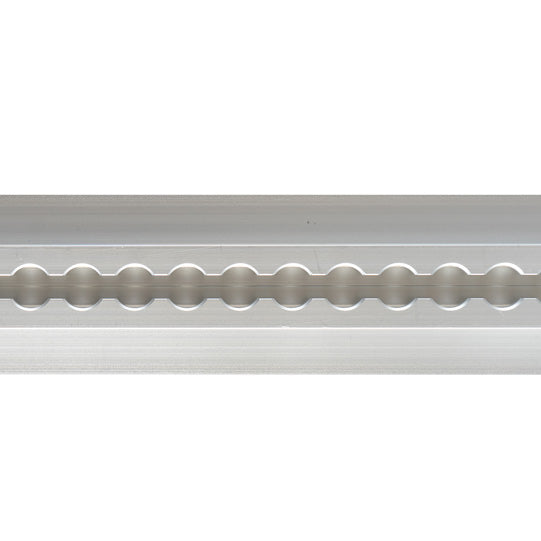

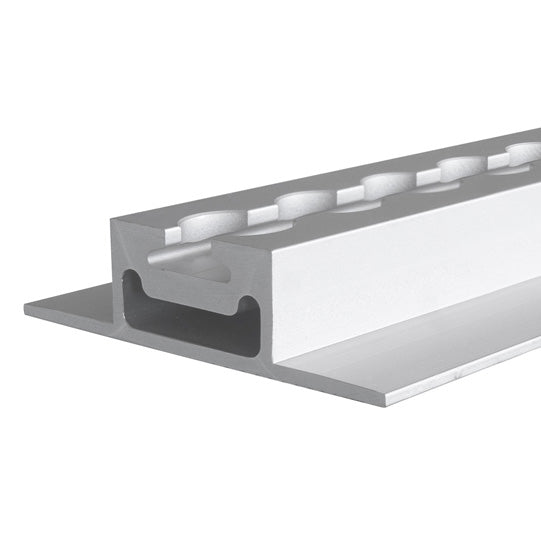

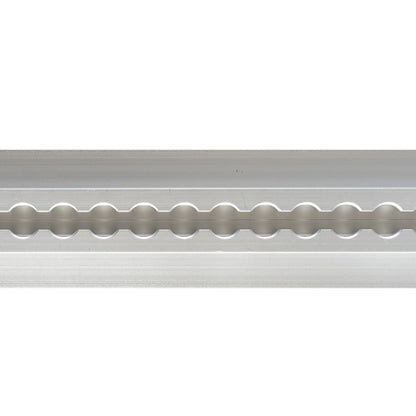

Airline profile anchor rail 4010-AL, aluminum anodised, 4170 mm

Airline profile anchor rail 4010-AL, aluminum anodised, 4170 mm

142138898

⚖️ 7,7 kg

Login view prices

Description

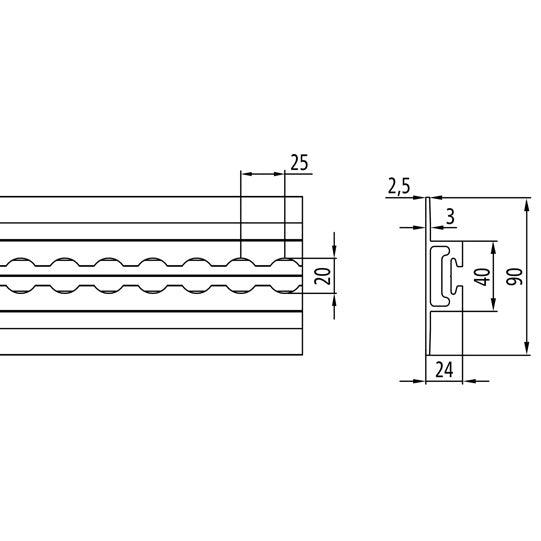

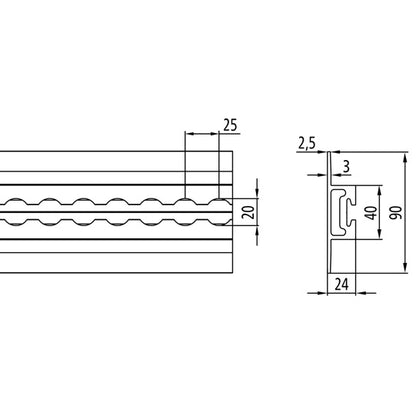

S-Line® Airline profile anchor channel 4010-AL,aluminum anodised, length 4170 mm, hole Ø 20 mm, 25 mm spacing, bottom wing design, 24 mm high, no countersunk hole, BLC ∡90° and ∡45° 1000 daN with end fitting 571, for floor mounting, compatible with combination spigot Ø 19/24 mm and all Airline end fittings

Attributes

Adhesive channel No
Countersunk holes No
Flat eyelet profile 0
Height 23.0
Hole diameter 20.0
Installation area Floor
Lashing rail profile 0
Lc value at 45 grad angle 1000.0
Lc value at 90 grad angle 1000.0
Length 4170.0
Material Aluminum
Profile with airline system 0
Side wall lifting aid 0
Surface Anodized

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
