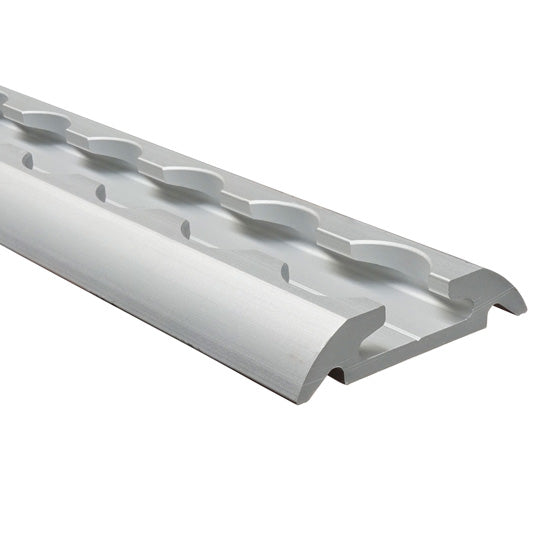

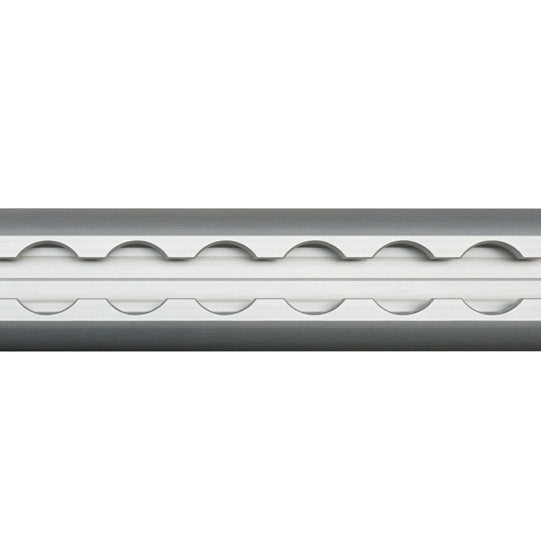

Airline profile anchor rail 4014-AL, 6 m, anodised aluminium

Airline profile anchor rail 4014-AL, 6 m, anodised aluminium

142139028

⚖️ 3,0 kg

Login view prices

Description

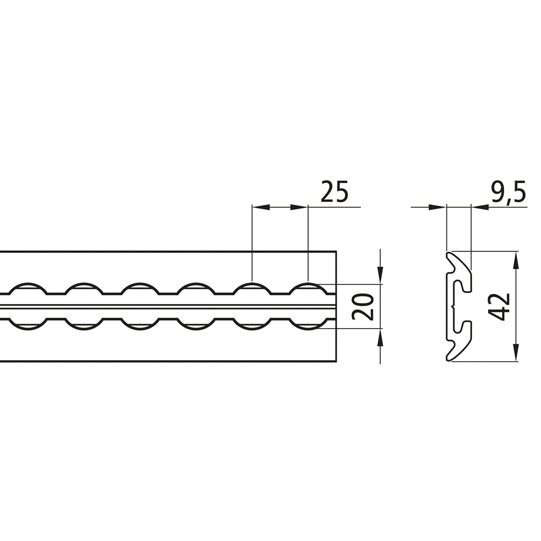

S-Line® Airline profile anchor channel semicircular 4014-AL, 6 m,aluminum anodised, with adhesive channel, hole Ø 20 mm,hole spacing 25 mm,LC at ∡90° 600 daN,LC at ∡45° 400 daN with end fitting 571,horizontal/vertical wall mounting, compatible with combination spigot Ø19/24 mmand all Airline end fittings

Attributes

Adhesive channel Yes
Countersunk holes No
Flat eyelet profile 0
Hole diameter 20.0
Installation area Wall vertical/horizontal
Lashing rail profile 0
Lc value at 45 grad angle 400.0
Lc value at 90 grad angle 600.0
Length 6000.0
Material Aluminum
Profile with airline system 0
Side wall lifting aid 0
Surface Anodized
Width 42.0
