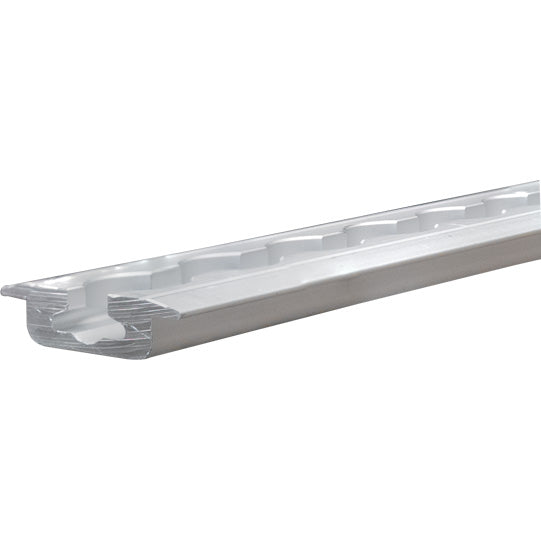

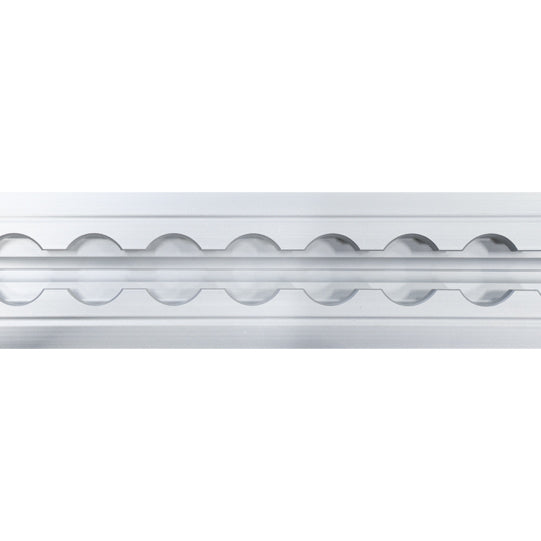

Airline profile anchor rail 4015-AL, anodised aluminium, 3000 m

Airline profile anchor rail 4015-AL, anodised aluminium, 3000 m

142138039

⚖️ 2,6 kg

Login view prices

Description

S-Line® Airline profile anchor channel 4015-AL, aluminum anodised, length 3000 mm, hole Ø: 20 mm, 25 mm spacing, height 11.5 mm, top wing version, without countersunk holes, BLC ∡90°; ∡45°: 1000 daN with end fitting 571, floor installation area, compatible with combination spigot Ø 19/24 mm and all Airline end fittings

Attributes

Adhesive channel No
Countersunk holes Yes
Flat eyelet profile 0
Height 11.0
Installation area Floor
Lashing rail profile 0
Lc value at 45 grad angle 1000.0
Lc value at 90 grad angle 1000.0
Length 3000.0
Material Aluminum
Profile with airline system 0
Side wall lifting aid 0
Surface Anodized
Width 50.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
