Aluminium 25 mm edging f. espagnolette lock, anodised

Aluminium 25 mm edging f. espagnolette lock, anodised

537621268

⚖️ 9,306 kg /m

Login view prices

Description

25 mm profile aluminum edging for espagnolette lock with flag, anodised in E6/C0 (EV1) natural, 6000 mm bearing length

Notes

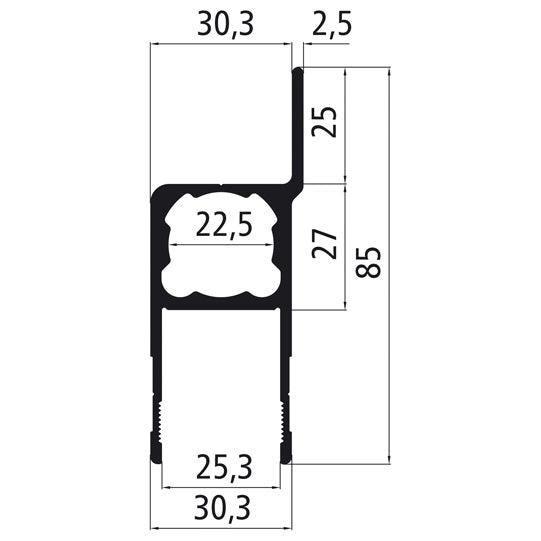

Illustration: The left-hand side of the profile is on the inside.
The brass bushes 612675177 must be used for the installation of Ø 16 mm espagnolette locks in the 621268 edging profile. The espagnolette is mounted in the edging with up to 4 brass bushes, 2 on the lock and one on the espagnolette hook. Thanks to the bearing in the bushing, the catch can be turned easily even after a long time and in the most adverse weather conditions. The bushing is knurled and is simply hammered into the chamber.

Attributes

Alloy EN AW-6063 T66 (AlMgSi 0.5 F25)
Color E6/C0 Nature
Flat eyelet profile 0
Height 85.0
Lashing rail profile 0
Length 6000.0
Material Aluminum
Profile type Edging
Profile with airline system 0
Side wall lifting aid 0
Stop Can be used on both sides
Surface anodized
Thickness 25.0
