Aluminium 25 mm SL, 150 mm top part f. bottom wall, epoxy prime

Aluminium 25 mm SL, 150 mm top part f. bottom wall, epoxy prime

534621100

⚖️ 2,159 kg /m

Login view prices

Description

aluminum Profile 25 mm SL, 150 mm upper section for beverage superstructure lower wall, epoxy primed, 8000 mm bearing length

Notes

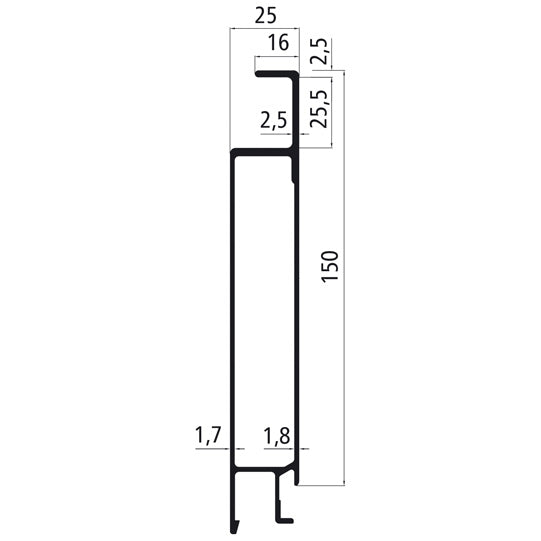

Illustration: The left-hand side of the profile is on the inside. Upper lower wall profile of the Suer beverage superstructures. With chamber for foam rubber 520111810 and bar for edge protection profile 520111701.

Attributes

Alloy EN AW-6063 T66 (AlMgSi 0.5 F25)
Drink body profile Yes
Flat eyelet profile 0
Height 150.0
Lashing rail profile 0
Length 8000
Material Aluminum
Profile position Upper part
Profile type Snaplock
Profile with airline system 0
Side wall lifting aid 0
Stop outside
Surface epoxy primed
System Snaplock profile
Thickness 25.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
