Aluminium 25 mm SL, 153 mm upper part w. hinge joint, anodised

Aluminium 25 mm SL, 153 mm upper part w. hinge joint, anodised

537621294

⚖️ 2,391 kg /m

Login view prices

Description

aluminum Profile 25 SL, 153 top section with hinge joint for profile 612910, anodised in E6/C0 (EV1) natural, 7500 mm bearing length

Notes

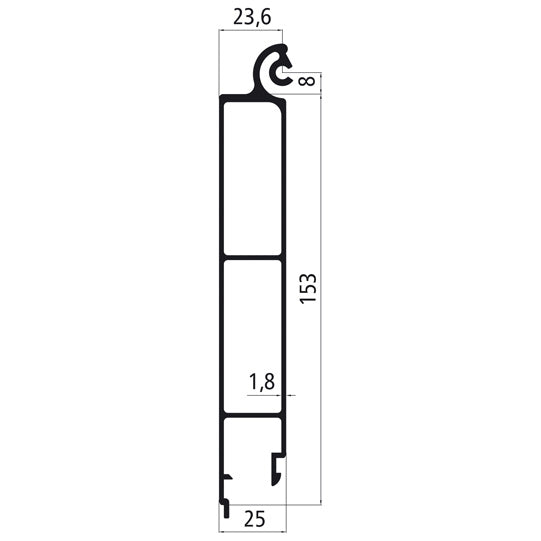

Illustration: The left profile side is inside.
The profile corresponds to a lower end profile in the coupling area; only top or middle profiles can be clipped in as a connection.
612910 and 621294 together form an upper end profile with a joint, which can be used e.g. for control flaps. The result is a smooth outer area that can be used optimally as an advertising space. The form-fit connection of the upper end profile to the connecting element eliminates the need for additional sealing of the flap in this area. Maximum opening angle 94°.

Attributes

Alloy EN AW-6063 T66 (AlMgSi 0.5 F25)
Color E6/C0 Nature
Flat eyelet profile 0
Height 161.0
Lashing rail profile 0
Length 7500
Material Aluminum
Profile position Upper part
Profile type Snaplock
Profile with airline system 0
Side wall lifting aid 0
Surface anodized
System Snaplock profile
Thickness 25.0
