Aluminium 25 mm SL, 200 mm centre section f. anchor channel, ep

Aluminium 25 mm SL, 200 mm centre section f. anchor channel, ep

534621304

⚖️ 19,718 kg /m

Login view prices

Description

aluminum Profile 25 SL, 200 centre section for anchor channel, epoxy primed, 7500 mm bearing length

Notes

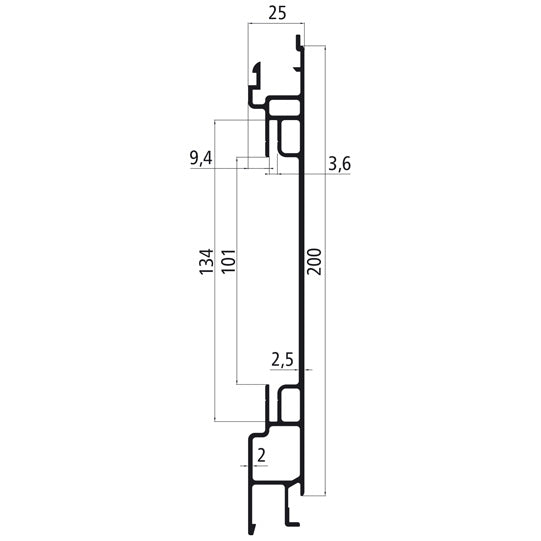

Illustration: The left profile side is on the inside.
With mounting for anchor tracks 142138001, 142138015, 142138016, 142138019, 142138021, 142138023 or 142138289.
Bearing length 7500 mm.

Attributes

Alloy EN AW-6063 T66 (AlMgSi 0.5 F25)
Flat eyelet profile 0
Height 200.0
Lashing rail profile Yes
Length 7500.0
Material Aluminum
Profile position Middle section
Profile type Snaplock
Profile with airline system 0
Side wall lifting aid 0
Surface epoxy primed
System Snaplock profile
Thickness 25.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
