Aluminium 25 mm SL, upper part w/ hinge joint, press-fit

Aluminium 25 mm SL, upper part w/ hinge joint, press-fit

535621294

⚖️ 2,391 kg /m

Login view prices

Description

aluminum Profile 25 SL, 153 upper part with hinge joint for profile 612910, mill finish, 7500 mm bearing length

Notes

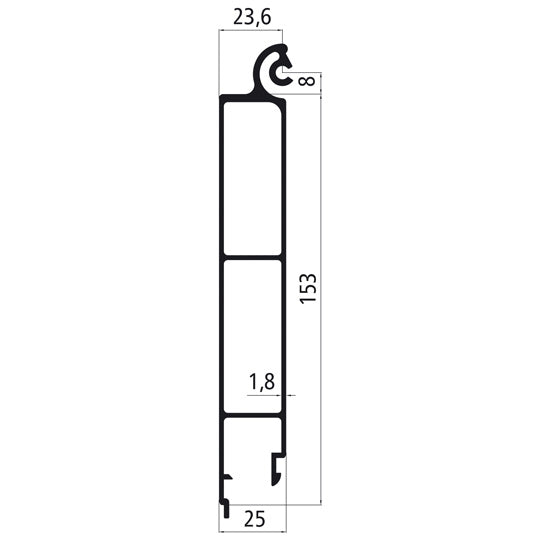

Illustration: The left profile side is inside.
The profile corresponds to a lower end profile in the coupling area; only top or middle profiles can be clipped in as a connection.
612910 and 621294 together form an upper end profile with a joint, which can be used e.g. for control flaps. The result is a smooth outer area that is ideal for use as an advertising space. The form-fit connection of the upper end profile to the connecting element eliminates the need for additional sealing of the flap in this area. Maximum opening angle 94°.

Attributes

Alloy EN AW-6063 T66 (AlMgSi 0.5 F25)
Flat eyelet profile 0
Height 161.0
Lashing rail profile 0
Length 7500
Material Aluminum
Profile position Upper part
Profile type Snaplock
Profile with airline system 0
Side wall lifting aid 0
Surface raw
System Snaplock profile
Thickness 25.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
