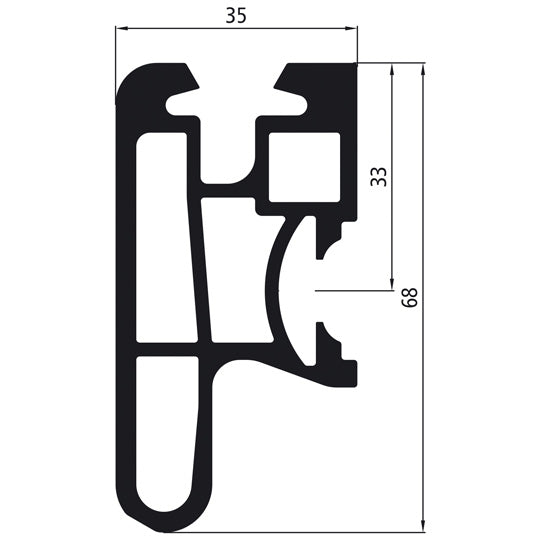

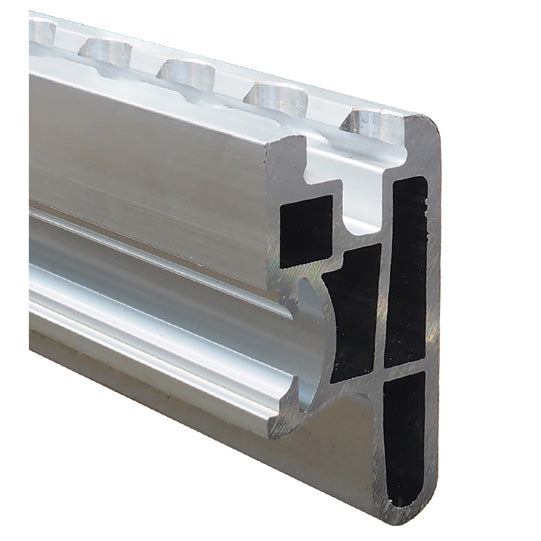

Aluminium combi bumper w/ airline channel, w/ milling, anodized

Aluminium combi bumper w/ airline channel, w/ milling, anodized

537644007

⚖️ 2,156 kg /m

Login view prices

Description

Aluminium combi impact protection with airline channel, with airline milling, anodized in E6/C0 (EV1) natural, 7600 mm bearing length

Notes

With chamber for M 8 truss-head bolt to DIN 603 and groove for push-on slats and pallet stop bars.
The combi ram protection with airline system can accommodate all airline fittings, lashing straps and load beams with airline fitting end fitting (flat), as well as Lock Beam with Ø 19 mm pin.
Suitable for superstructures with side boards where the side board hinge radius is at least 38 mm.

Attributes

Flat eyelet profile 0
Lashing rail profile 0
Material Aluminum
Profile type Impact protection profile
Profile with airline system Yes
Side wall lifting aid 0
Stop without stop
Surface anodized
