Aluminium connecting element f. upper hinge part, anodised

Aluminium connecting element f. upper hinge part, anodised

537612910

⚖️ 0,519 kg /m

Login view prices

Description

aluminum Connecting element for upper hinge part 621294, anodised, 7600 mm position length

Notes

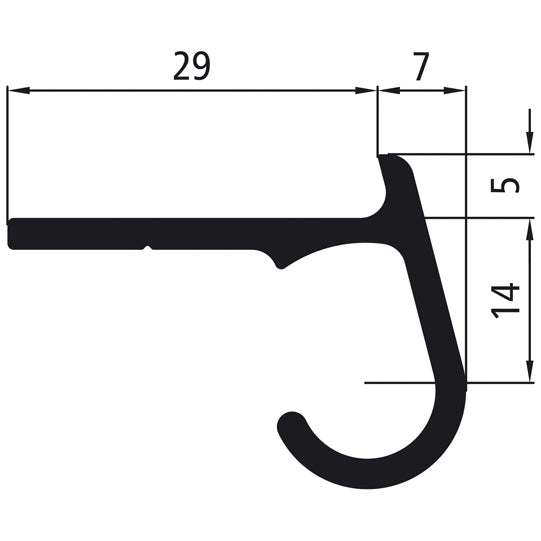

Illustration: The left profile side is inside.
612910 and 621294 together form an upper end profile with a hinge, which can be used e.g. for flaps. The result is a smooth outer area that can be used optimally as an advertising space. The form-fit connection of the upper end profile to the connecting element eliminates the need for additional sealing of the flap in this area. Maximum opening angle 94°.

Attributes

Alloy EN AW-6063 T66 (AlMgSi 0.5 F25)
Color E6/C0 Nature
Flat eyelet profile 0
Lashing rail profile 0
Length 7600
Material Aluminum
Profile position Upper part
Profile type Dropside profile
Profile with airline system 0
Side wall lifting aid 0
Surface anodized
System Snaplock profile
