Aluminum 25 SL 232 lower part, epoxy base, milled and drilled

Aluminum 25 SL 232 lower part, epoxy base, milled and drilled

543621309

⚖️ 10,24 kg /m

Login view prices

Description

Aluminum profile 25 mm SL, 232 mm lower part front wall, epoxy primed, milled and drilled according to drawing 08 305 31, fixed length 2240 mm

Notes

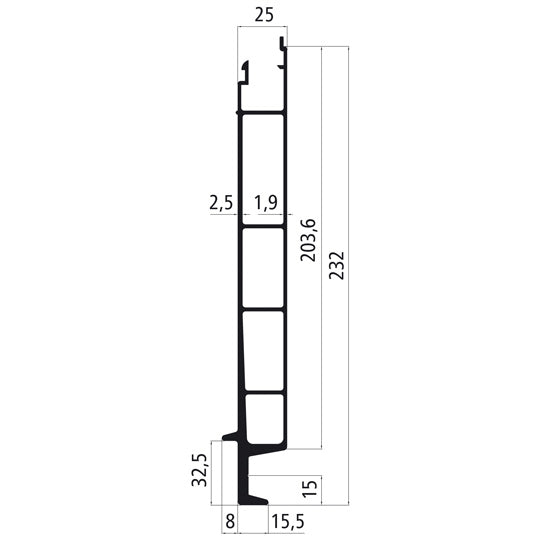

Illustration: The left profile side is on the inside.
In combination with a Cargotrail ASP1 or SSP3 floor frame.

Attributes

Alloy EN AW-6063 T66 (AlMgSi 0.5 F25)
Flat eyelet profile 0
Height 232.0
Lashing rail profile 0
Material Aluminum
Profile position Lower part
Profile type Snaplock
Profile with airline system 0
Side wall lifting aid 0
Surface powder-coated
System Snaplock profile
Thickness 25.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
