Aluminum connecting element for upper hinge part, epoxy primed

Aluminum connecting element for upper hinge part, epoxy primed

534612910

⚖️ 0,519 kg /m

Login view prices

Description

Aluminum connecting element for upper hinge part 621294, epoxy primed, 7600 mm layer length

Notes

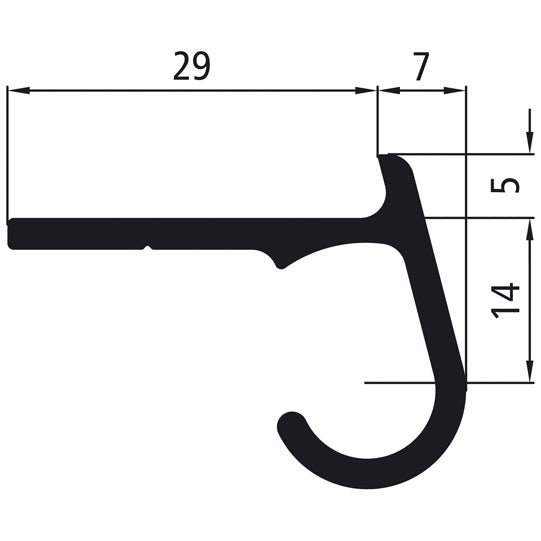

Illustration: The left-hand side of the profile is on the inside.
612910 and 621294 together form an upper end profile with a joint, which can be used e.g. for flaps. The result is a smooth outer area that can be used optimally as an advertising space. The form-fit connection of the upper end profiles to the connecting element eliminates the need for additional sealing of the flap in this area. Maximum opening angle 94° This item is not a stock item and is ordered on customer commission. The price shown may vary and will be communicated to you in the order confirmation.

Attributes

Alloy EN AW-6063 T66 (AlMgSi 0.5 F25)
Flat eyelet profile 0
Lashing rail profile 0
Length 7600.0
Material Aluminum
Profile position Upper part
Profile type Side board profile
Profile with airline system 0
Side wall lifting aid 0
Surface epoxy primed
System Snaplock profile
