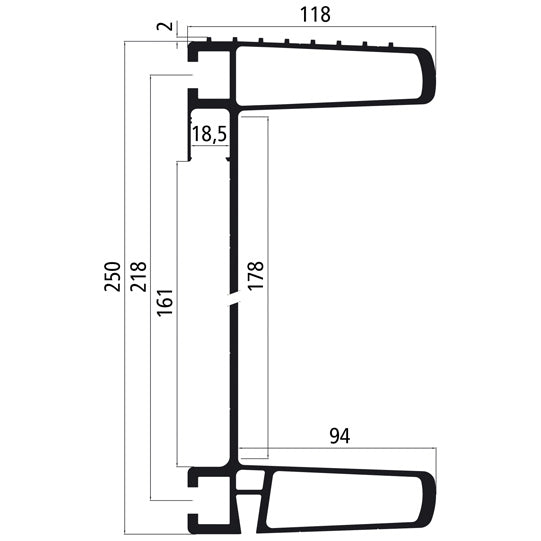

Aluminum underride guard, 563040, 2400 mm, special coating

Aluminum underride guard, 563040, 2400 mm, special coating

380563222

⚖️ 19,4 kg

Login view prices

Description

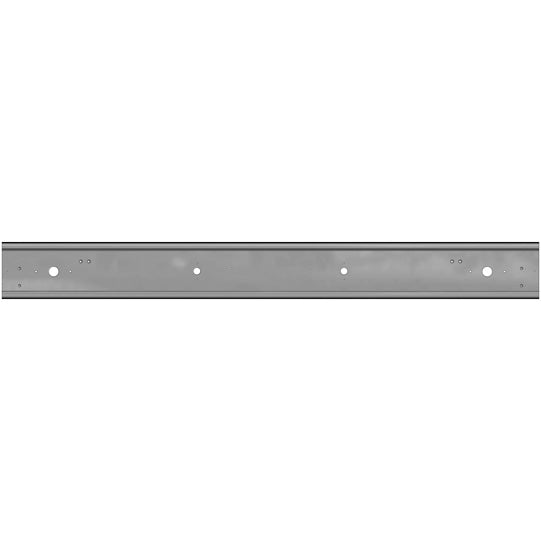

Aluminum underride guard, type 563040, 2400 mm, RAL 7350, completely machined for lighting systems

Notes

A C T I O N !!!
To comply with ECE type approval E1*58R-020230, the underride guard must only be fitted in accordance with the installation instructions: Slotted head bolt 380563041, bracket 380563047, reinforcement 380563042 (required up to frame width 1250 mm). Please order these items separately The set of documents consists of ECE type approval E1*58R-020230.

Attributes

Design With hole pattern
Length 2400.0
Material Aluminum
Surface Anodized
Type punkt 1 563040

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
