Built-in clamping lock H 207, with lift-out function

Built-in clamping lock H 207, with lift-out function

102102977

⚖️ 1,7 kg

Login view prices

Description

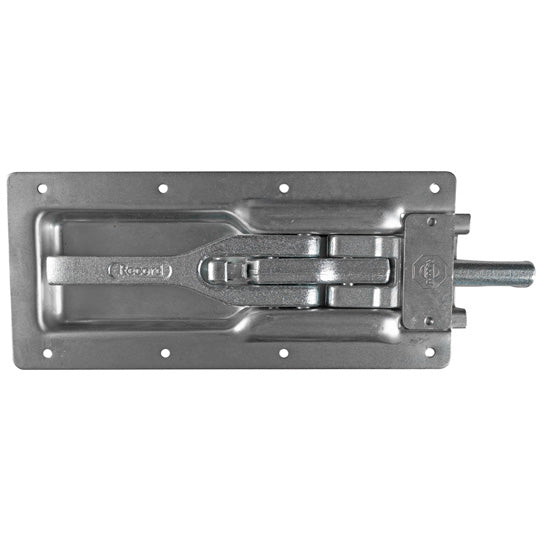

Built-in clamping lock H 207, with lift-out function

Notes

Can be used for superstructures/platforms without corner stanchions. As soon as the lever is actuated, the locking hook swivels away from the counterholder and gives the rear side board the necessary space for collision-free opening.installation measures identical to all common installation latches.protection against independent opening.adjustment options for the hook.

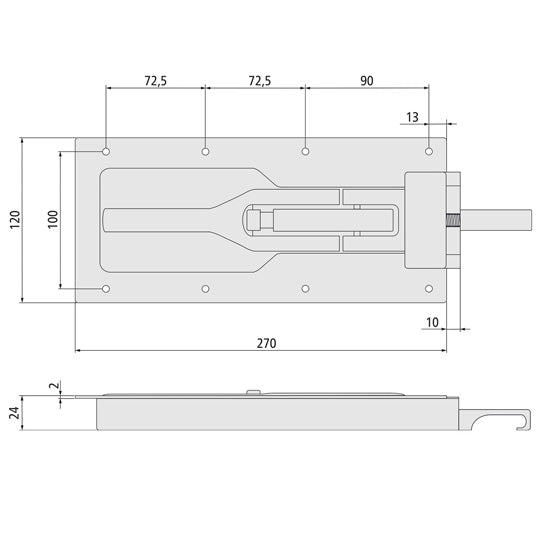

Attributes

Closure type Tension lock
Flat eyelet profile 0
Height 24.0
Lashing rail profile 0
Length 270.0
Material Steel
Profile with airline system 0
Side wall lifting aid 0
Surface Galvanized
Width 120.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
