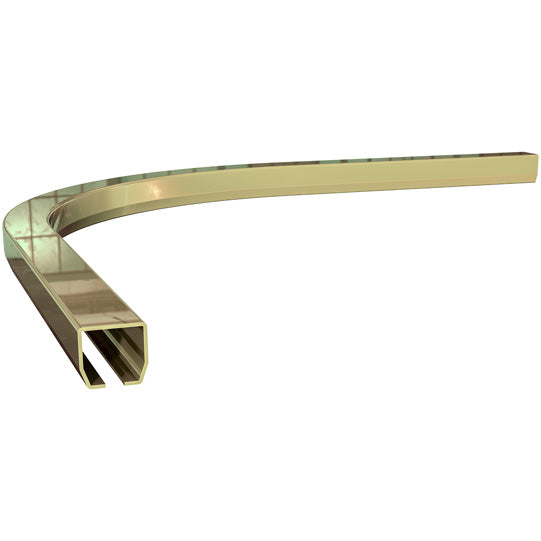

Circular bend 90 degrees f. profile 400/type 24, galvanised stl

Circular bend 90 degrees f. profile 400/type 24, galvanised stl

320121506

⚖️ 7,19 kg

Login view prices

Description

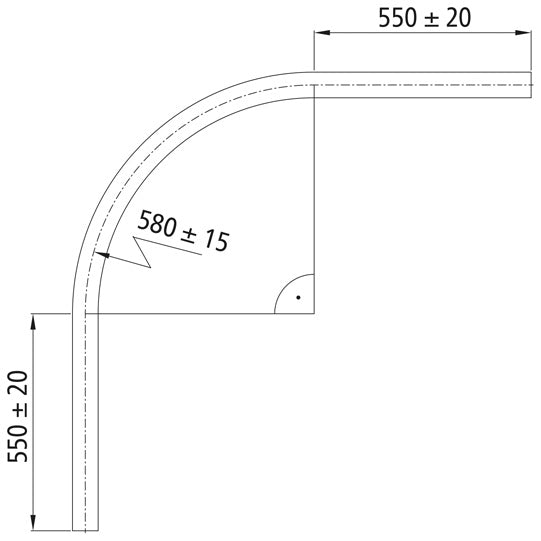

Circular bend 90 degrees for profile 400/type 24, galvanised steel, length 2000 mm, radius 580 mm± 15 mm

Notes

The load capacity specifications for the rollers, roller units and transport trailers are based on a suspension distance of 75 cm for the associated runners.
The 90° bends ensure that the rollers and trolleys run smoothly. Due to the 500 mm straight excess length on both sides, the rail joint is outside the bend, which means that the ball bearings of the rollers and trolleys are only subject to minimal stress.this item is not a stock item and is ordered on customer commission. The price shown may vary and will be communicated to you in the order confirmation.

Attributes

Length 2000.0
Material Steel
Surface Galvanized

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
