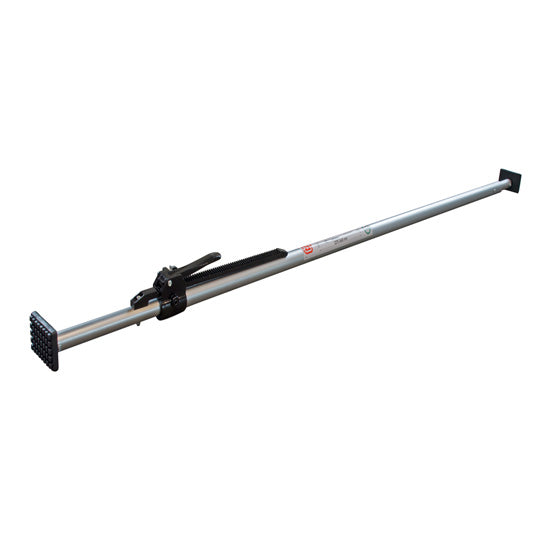

Clamping rod 1342 flush, aluminium/el, 2650-3020mm, BC130/200da

Clamping rod 1342 flush, aluminium/el, 2650-3020mm, BC130/200da

142138509

⚖️ 4,69 kg

Login view prices

Description

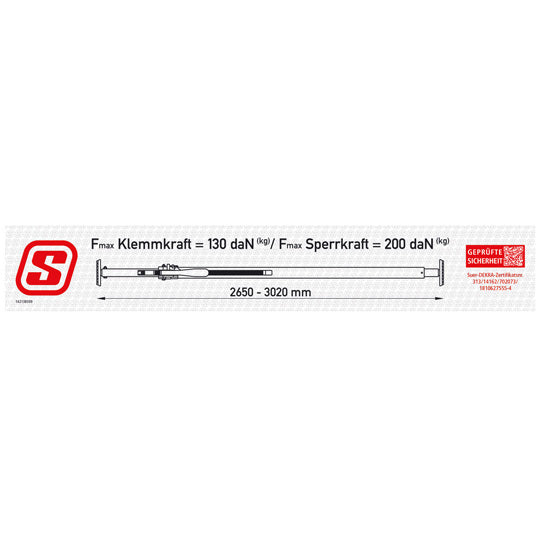

S-Line clamping rod 1342 stepless, Al/el, BC 130 daN with rubber base / 200 daN with spigot, aluminum anodised, application range 2650-3020mm, rubber base 103x65-Ø24mm - Rigid side: 142138091, spring side: 142138091, labelled, DEKRA-certified, optional spigot spring side: KØ19/24S - 142138732, Ø19 - 142138764, Ø24/33 - 142138772, Ø24 - 142138768, Ø19/24/32 - 142138850, optional spigot rigid side: KØ19/24S - 142138732, Ø19 - 142138764, Ø24/33 - 142138772, Ø24 - 142138768, Ø19/24/32 - 142138850

Notes

The clamping beams can be retrofitted with telescopic, support tube or both sides with combination spigot Ø 19/24 mm with slot, spigot 19 mm, spigot 24 mm or spigot 24/33 mm by us as a special design.
Prices, minimum order quantities and delivery times on request.

Attributes

Adjustable Yes
Adjustment range 370
Application area 2650 - 3020
Clamping force 130.0
End fitting Square rubber foot
Locking force 200.0
Material Aluminum
Rubber coating No
Surface Anodized
Tube diameter 42
Tube shape round
