Combination anchor channel 2010, galvanised stl., 3048 mm

Combination anchor channel 2010, galvanised stl., 3048 mm

142138008

⚖️ 5,0 kg

Login view prices

Description

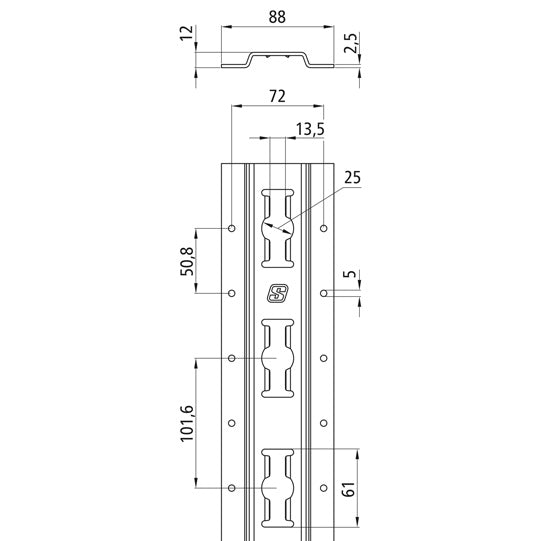

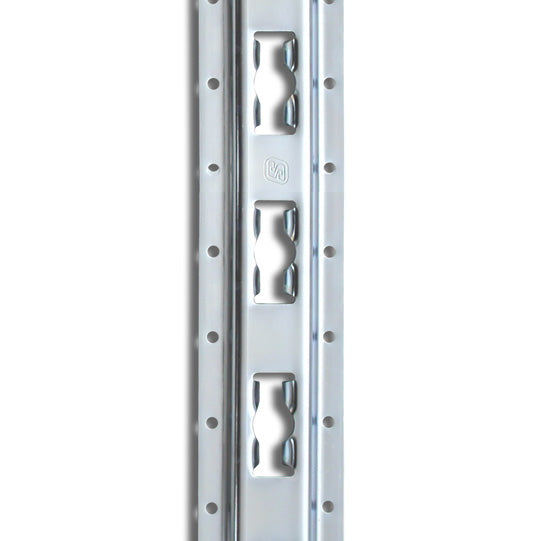

S-Line® Combination anchor channel 2010, galvanised steel, for vertical wall mounting, length 3048 mm, compatible with combination spigot ø 19/24 mm and combination anchor channel end fittings

Attributes

Adhesive channel No
Countersunk holes No
Hole diameter 25.0
Installation area Vertical wall
Lc value at 45 grad angle 1000.0
Lc value at 90 grad angle 1000.0
Length 3048.0
Material Steel
Material thickness 2.5
Surface Galvanized
Width 88.0
