Combination anchor channel 3009, galvanised stl., 3048 mm, 2.5

Combination anchor channel 3009, galvanised stl., 3048 mm, 2.5

142138016

⚖️ 6,96 kg

Login view prices

Description

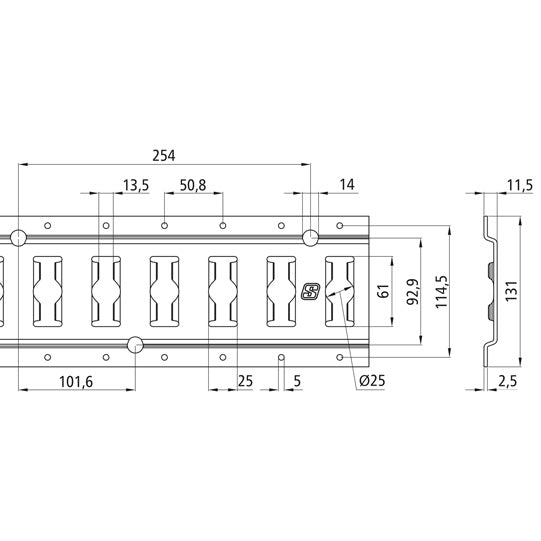

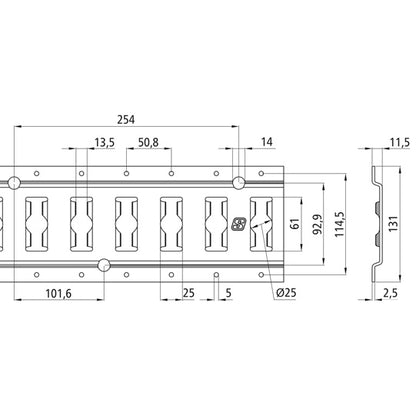

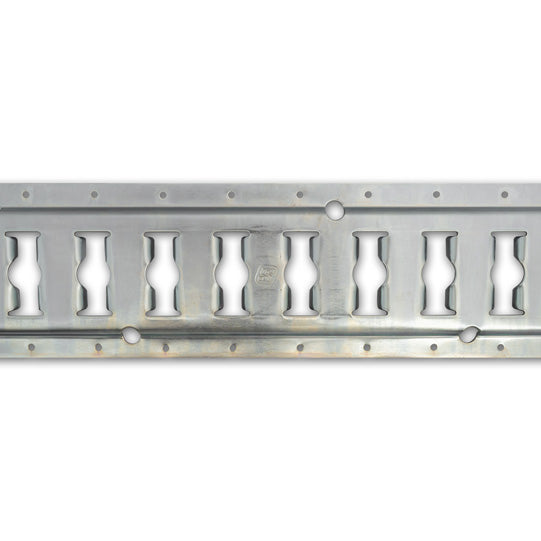

S-Line® Combination anchor channel 3009, galvanised steel, for horizontal wall mounting, length 3048 mm, compatible with combination spigot ø 19/24 mm and combination anchor channel end fittings, 2.5 mm

Attributes

Adhesive channel No
Countersunk holes No
Flat eyelet profile 0
Hole diameter 25.0
Installation area Horizontal wall
Lashing rail profile 0
Lc value at 45 grad angle 1000.0
Lc value at 90 grad angle 1000.0
Length 3048.0
Material Steel
Material thickness 2.5
Profile with airline system 0
Side wall lifting aid 0
Surface Galvanized
Width 131.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
