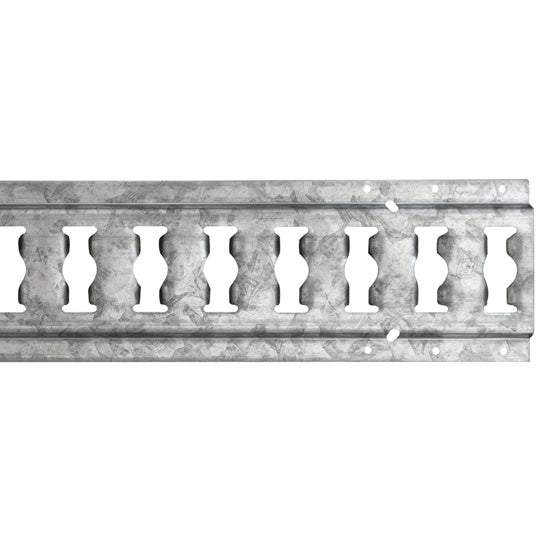

Combination anchor channel 3009-VK, pre-galvanised stl., 6000 m

Combination anchor channel 3009-VK, pre-galvanised stl., 6000 m

142138754

⚖️ 13,8 kg

Login view prices

Description

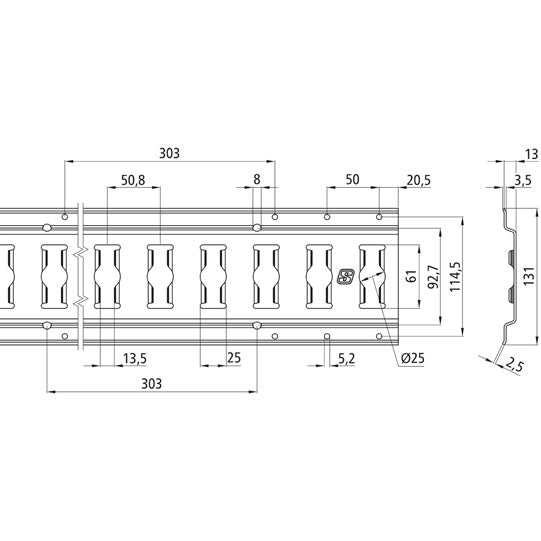

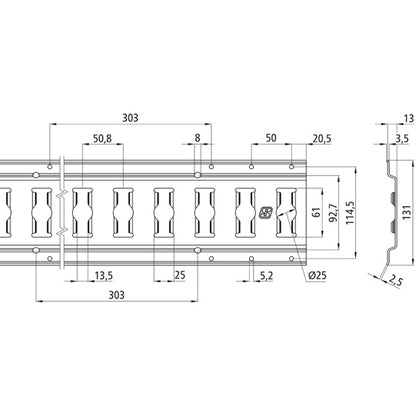

S-Line® combi anchor channel 3009, pre-hot-dip galvanised steel, with adhesive edge, for horizontal wall mounting, length 6000 mm, compatible with combi spigotØ 19/24 mm and combi anchor channel end fittings

Attributes

Adhesive channel Yes
Countersunk holes No
Hole diameter 25.0
Installation area Horizontal wall
Lc value at 45 grad angle 1000.0
Lc value at 90 grad angle 1000.0
Length 6000.0
Material Steel
Material thickness 2.5
Surface Pre-galvanized
Width 131.0
