Connecting sleeve f. profile 100/type 21, galvanised

Connecting sleeve f. profile 100/type 21, galvanised

320121517

⚖️ 0,253 kg

Login view prices

Description

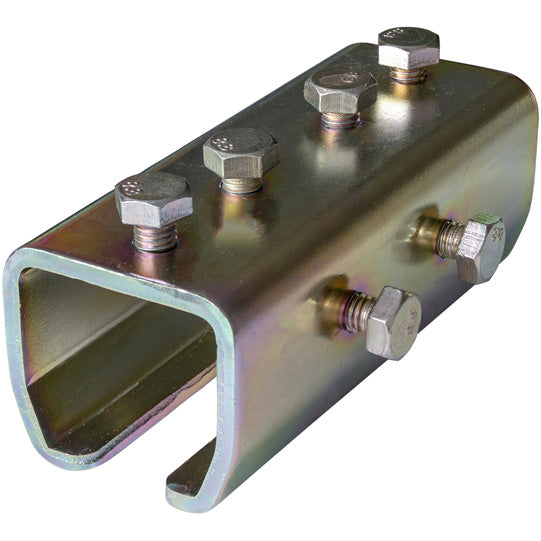

Connecting sleeve for profile 100/type 21, galvanised steel

Notes

Rail joints are bridged by connecting sleeves. Welding the tracks is not necessary or recommended when using the connecting sleeves. During installation, care must be taken to ensure a smooth transition.
When fitting to the tracks, first tighten the top screws and then align the profiles using the side screws.

Attributes

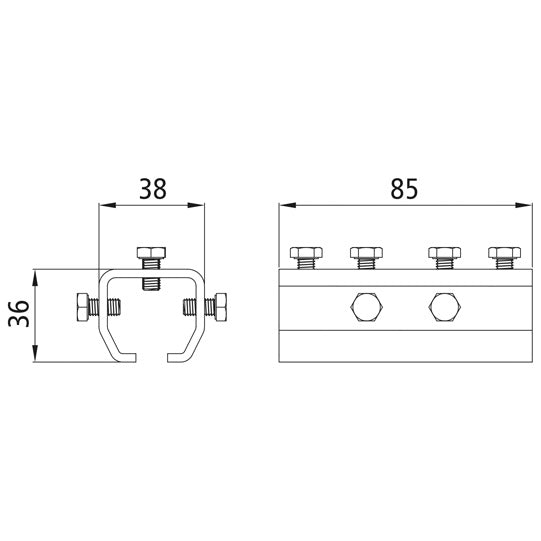

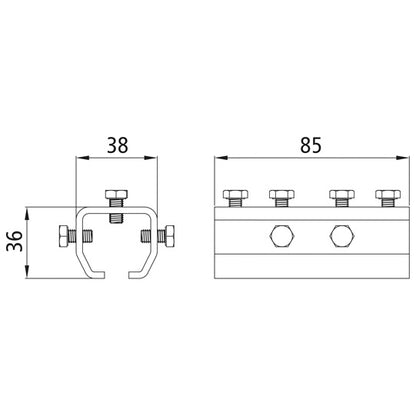

Height 36.0
Length 85.0
Material Steel
Surface Galvanized
Width 38.0
