Connecting sleeve f. profile 300/type 23, galvanised

Connecting sleeve f. profile 300/type 23, galvanised

320121518

⚖️ 0,55 kg

Login view prices

Description

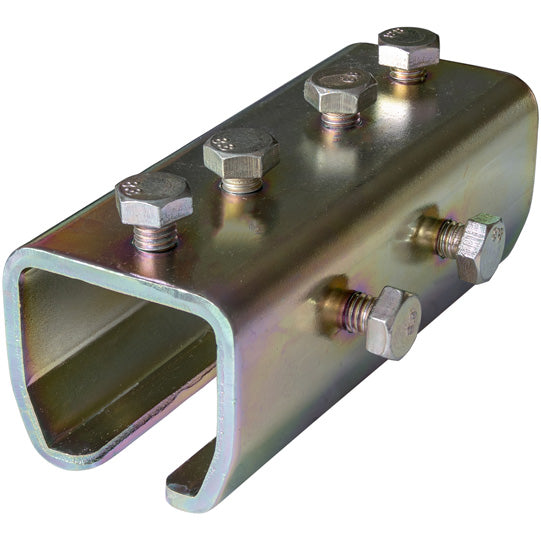

Connecting sleeve for profile 300/type 23, galvanised steel

Notes

Rail joints are bridged by connecting sleeves. Welding the tracks is not necessary or recommended when using the connecting sleeves. During installation, care must be taken to ensure a smooth transition.
When fitting to the tracks, first tighten the top screws and then align the profiles using the side screws.

Attributes

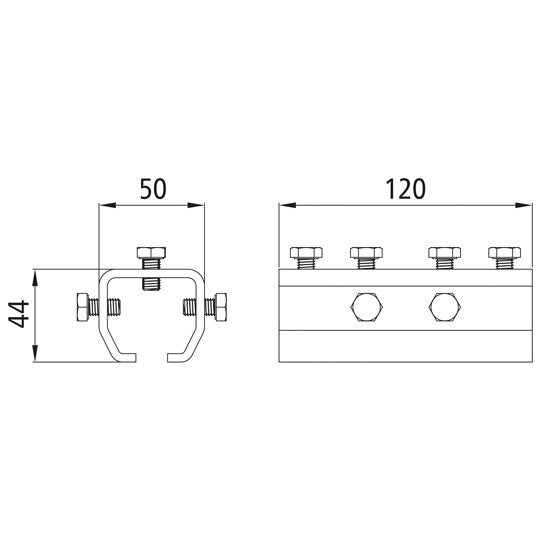

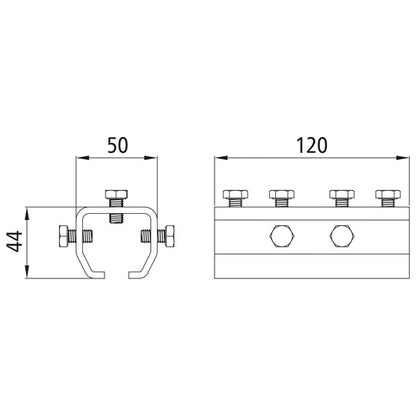

Height 44.0
Length 120.0
Material Steel
Surface Galvanized
Width 50.0
