DA mudguard D 2218/12, galv., 220 × 1820 × 375 × 375 × 1390 mm

DA mudguard D 2218/12, galv., 220 × 1820 × 375 × 375 × 1390 mm

132354045

⚖️ 4,4 kg

Login view prices

Description

Double-axle mudguard D 2218/12, sendzimir galvanized sheet steel, 220 × 1820 × 375 × 375 × 1390 mm (w × l × h × r × s), for attachment to the dropside, with mounting hole pattern

Notes

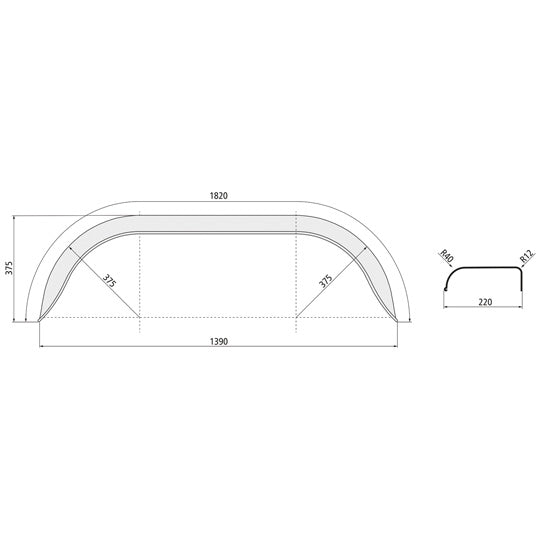

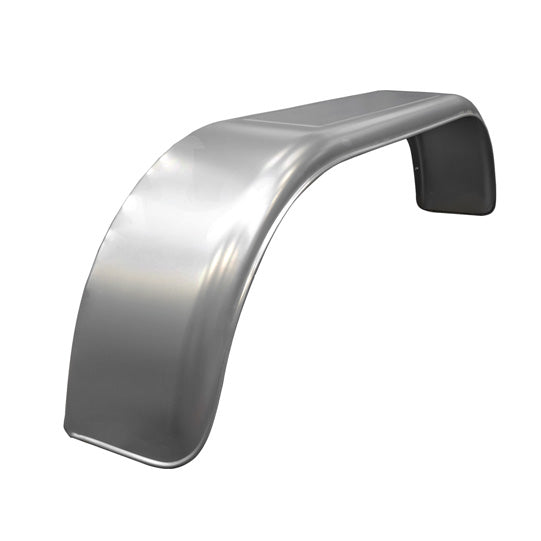

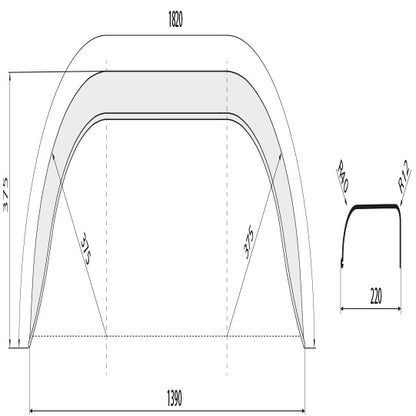

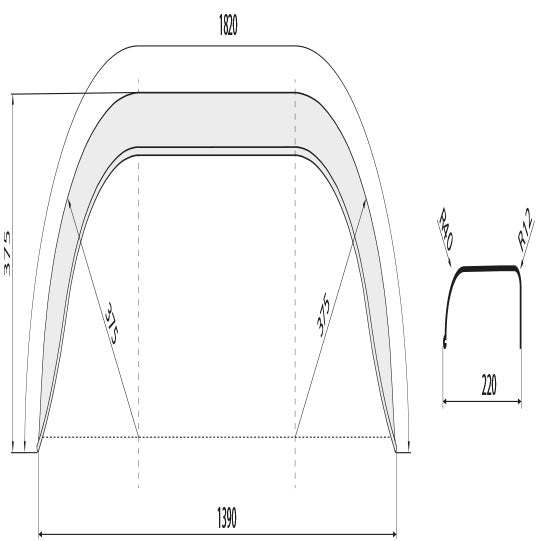

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 1390.0
Height 375.0
Length 1820.0
Material Sheet metal
Material thickness 1.0
Mounting hole pattern with
Mudguard console No
Radius 375.0
Splash guard No
Surface Sendzimir galvanizing
Width 220.0
