DA mudguard D 2220/12, galvanised, 220 × 2040 × 375 × 375 × 155

DA mudguard D 2220/12, galvanised, 220 × 2040 × 375 × 375 × 155

132354239

⚖️ 4,9 kg

Login view prices

Description

Double-axle mudguard D 2220/12, sendzimir galvanised sheet steel, 220 × 2040 × 375 × 375 × 1550 mm (w × l × h × r × s), for mounting on the side board, with mounting hole pattern

Notes

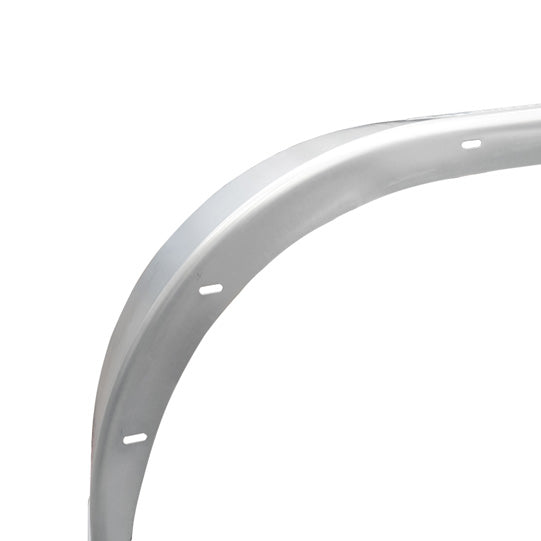

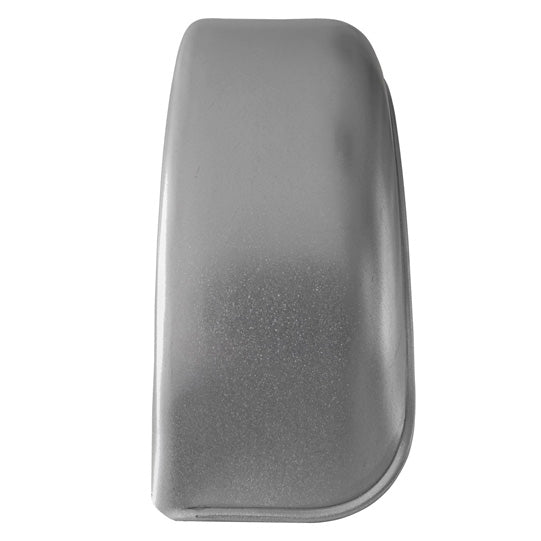

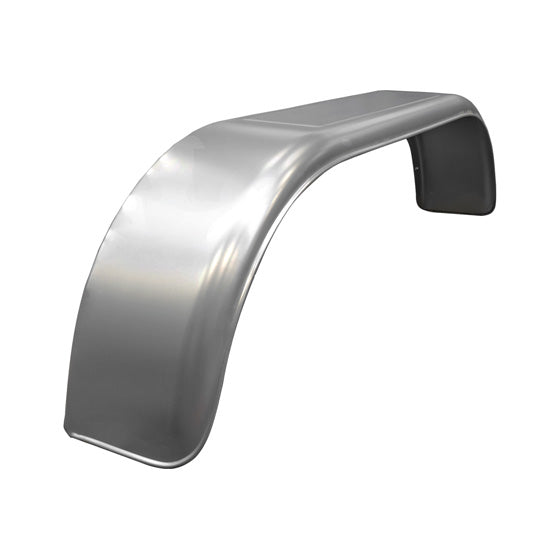

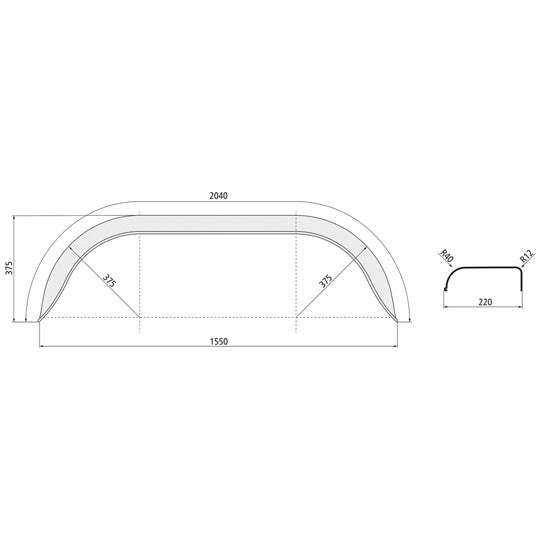

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 1550.0
Height 375.0
Length 2040.0
Material Sheet metal
Material thickness 1.0
Mounting hole pattern with
Mudguard console No
Radius 375.0
Splash guard No
Surface Sendzimir galvanizing
Width 220.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
