Double axle mudguard D ALQ 69270 (round), chequer plate

Double axle mudguard D ALQ 69270 (round), chequer plate

110353045

⚖️ 21,0 kg

Login view prices

Description

Double-axle mudguard D ALQ69270 (round shape), aluminum chequer plate 2.5/4 mm, 3-sided welded edge protection, 690 × 3570 × 670 × 650 × 2700 mm (w × l × h × r × s)

Notes

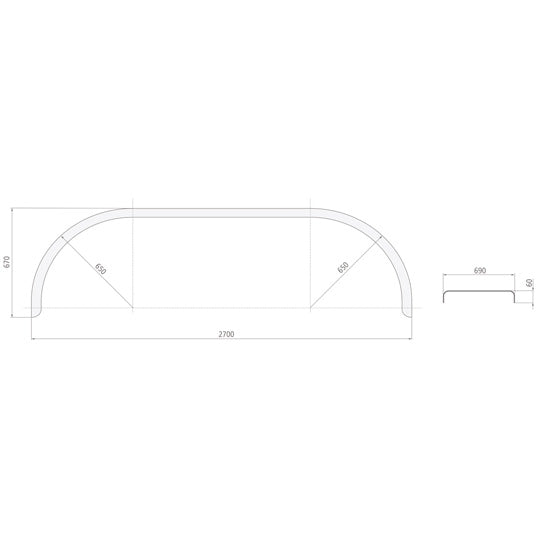

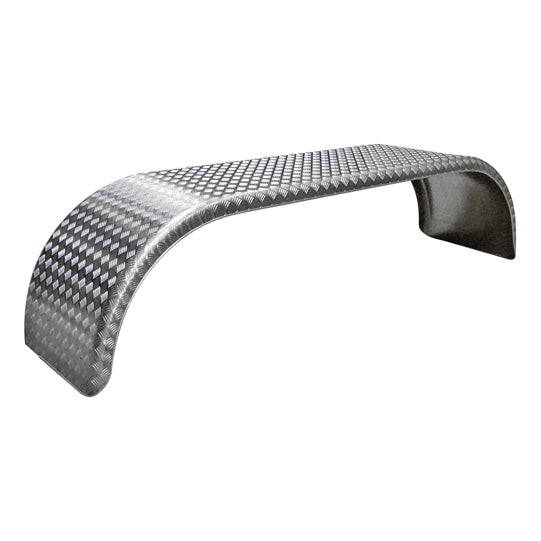

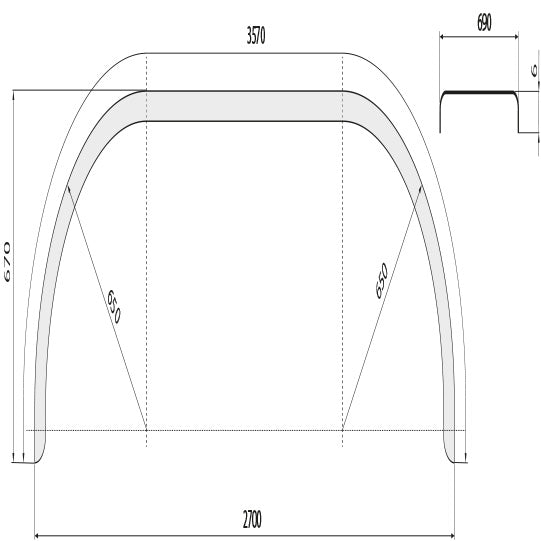

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 2700.0
Height 670.0
Length 3570.0
Material Aluminum
Mudguard console No
Radius 650.0
Splash guard No
Width 690.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
