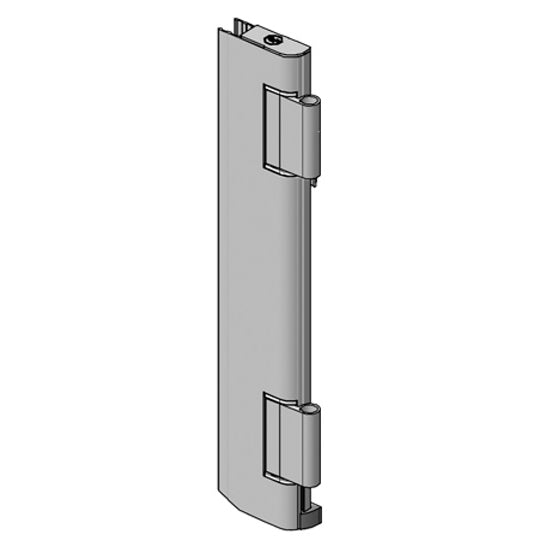

Double-jointed hinge PWP, 513 mm, anodized, right

Double-jointed hinge PWP, 513 mm, anodized, right

105112162

⚖️ 2,32 kg

Login view prices

Description

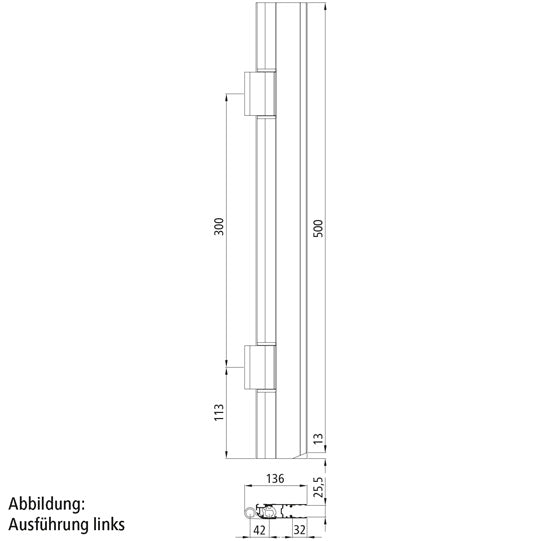

PWP double-joint door hinge, right-hand version, anodized surround, nominal height 500 mm, with aluminium surround profiles Dimension 513 mm: 100 mm from top edge to center of hinge link - 300 mm between hinge links - 113 mm from center of hinge link to bottom edge

Notes

For mounting a surface-mounted dropside door. Double-jointed hinges for 25 mm aluminum profiles, sandwich panels or similar.
Please order fixing set and the cover cap, door guide and seal options separately.

Attributes

Flat eyelet profile 0
Hinge type Double-jointed hinge
Lashing rail profile 0
Profile with airline system 0
Side wall lifting aid 0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
