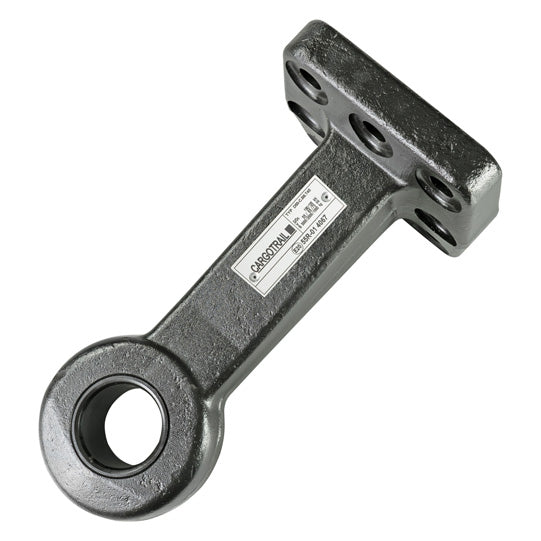

Drawbar eye Ø 50 w/ flange 8-hole w/out plate and screws

Drawbar eye Ø 50 w/ flange 8-hole w/out plate and screws

400431451

⚖️ 11,25 kg

Login view prices

Description

Drawbar eye D-50 with flange, 8-hole design, without plate and screws, complies with EC 94/20/CE, can be screwed onto counter plate 400431452

Notes

Version up to 40 km/h: max. drawbar load 2000 kg, permissible gross weight 27000 kg, max. drawbar load 2500 kg, permissible gross weight 25000 kg, max. drawbar load 3000 kg, permissible gross weight 23000 kg Version over 40 km/h: max. drawbar load 1000 kg, V-value 75 kN, max. drawbar load 2000 kg, V-value 65 kN, max. drawbar load 2500 kg, V-value 55 kN

Attributes

Dc value 135.0
Diameter 50
D minus value 190.0
