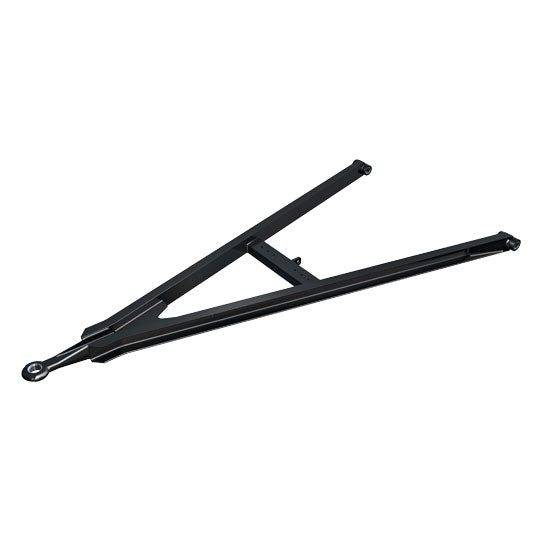

Drawbar GNZ 27 straight, UNP, SB, 2600/1200/100/30 mm, eyelet 4

Drawbar GNZ 27 straight, UNP, SB, 2600/1200/100/30 mm, eyelet 4

410439413

⚖️ 60,0 kg

Login view prices

Description

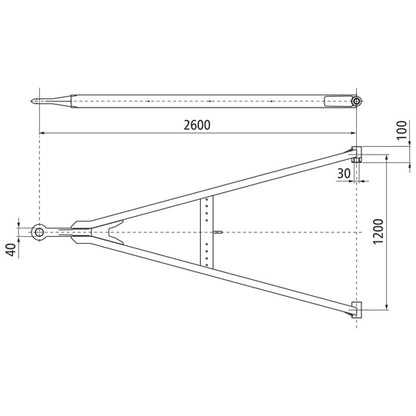

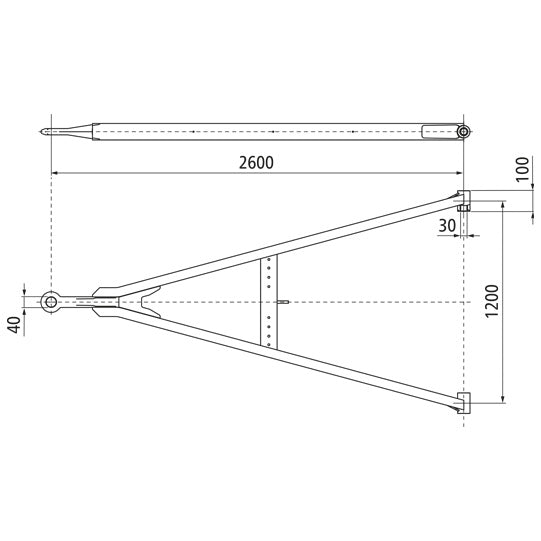

Drawbar GNZ 27 straight, UNP, silent bushing, length 2600 mm, clamp centre 1200 mm, clamp width 100 mm, bolt Ø 30 mm, drawbar eye 40 mm

Attributes

Bearing eye diameter 30.0
Bearing eye width 100.0
Draw eye diameter 40.0
Fork center distance 1200.0
Length 2600.0
Perm punkt total weight 27.0
