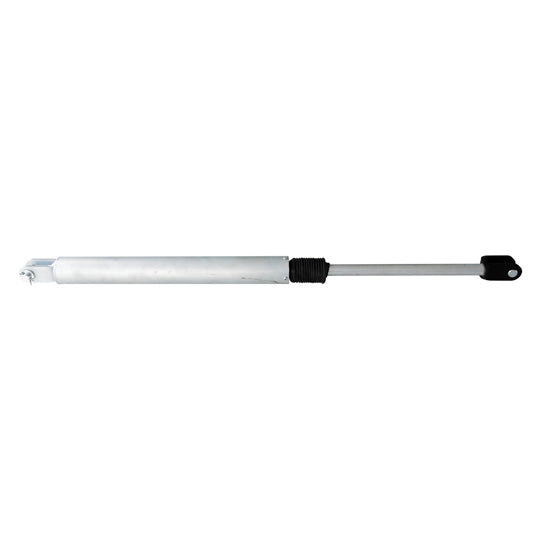

Drawbar support-KLEMMFIX 72/D ver. C, pressure-acting

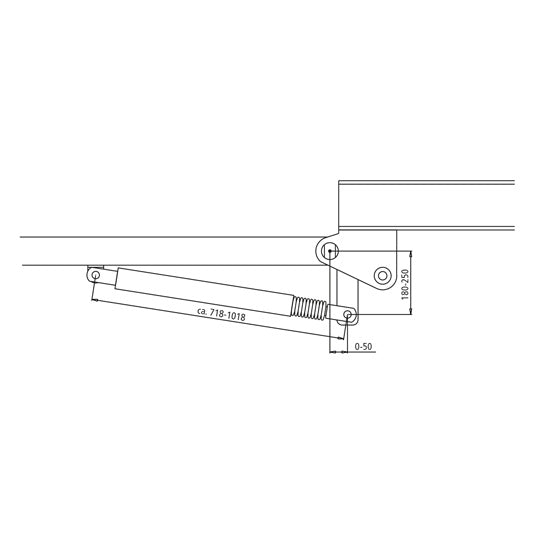

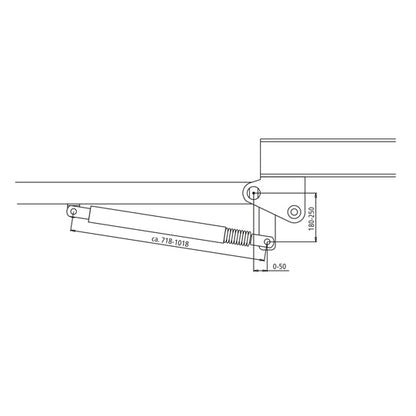

The Klemmfix 72 is a height adjustment device for drawbars that allows the drawbar eye to be infinitely adjusted up and down by at least 300 mm (measured at the drawbar eye) for optimum adjustment. The Klemmfix 72/Z version, acting in tension, is supplied ready for installation, the Klemmfix 72/D version, acting in compression, is supplied with a loose fork shoe for welding to the push rod. This can be shortened by 300 mm depending on the required installation situation. If the drawbar weight exceeds 75 kg, an additional height retaining device (e.g. type VHE or the compression spring package) must be fitted. The connection point on the drawbar can be located either on the longitudinal or cross strut.
