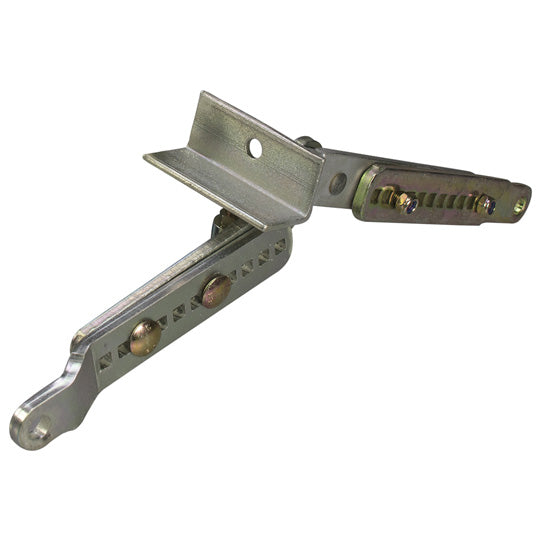

Edscha adjustable equalizing joint right

This adjustable compensation joint is suitable for roof bows with a roof pitch of 0 mm and 50 mm.
On the VP Classic (155), the joint must be adjusted to the roof by changing the lower, cranked joint extension from the outside to the inside.
Illustration: Left-hand version.

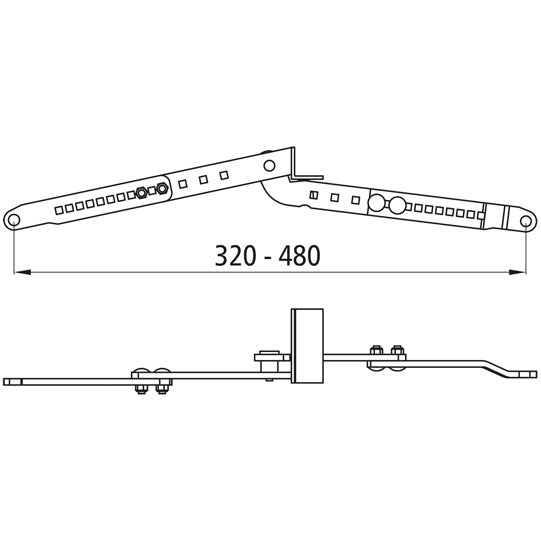

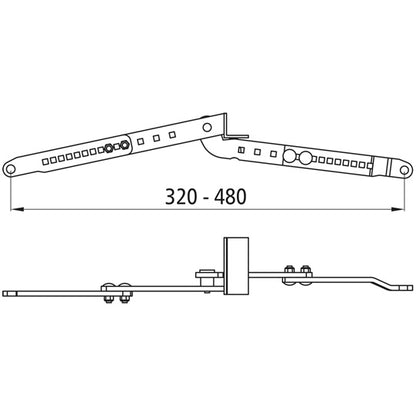

The difference between the hinges is the distance between the mounting holes for the trolleys when extended. The 570 mm variant is primarily used for all twisting systems, whereby it is always mounted from the superstructure end to the front and the foremost roller carriage/articulated roof bow combination in the direction of travel is connected to the fixed front wall bow using a Ø 4 mm safety cable that can be adjusted in length. The foremost roof bow should have a distance of 200mm - 300mm to the end wall bow. In order to be able to maintain this distance with the large number of body lengths, compensating joints that allow a roller carriage distance of 460mm or 330mm are fitted as the foremost joint. The situation is slightly different with the "canopy can be moved on both sides" variant. In this case, the length of the top must correspond exactly to the body length, as all parts, from the rear to the front end section, are connected to each other via joints. The adjustable compensating joint is used here in order to be able to manufacture the soft top length to the exact centimeter.
