Edscha CS-centre pillar Safe TRS, stanchion body KTL-coated

Edscha CS-centre pillar Safe TRS, stanchion body KTL-coated

660038043

⚖️ 17,7 kg

Login view prices

Description

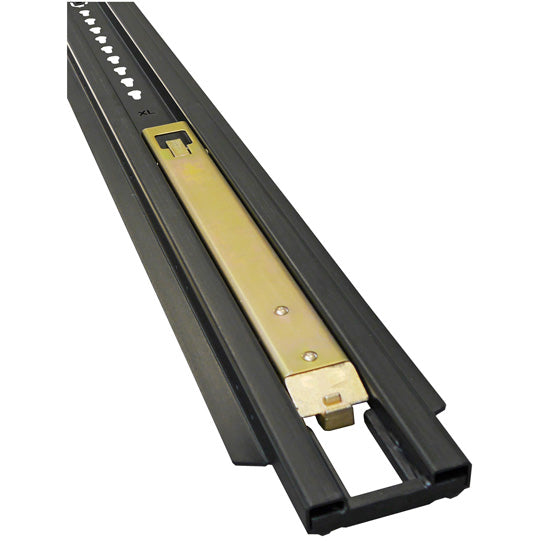

Edscha CS-centre pillar Safe TRS, stanchion body steel, black KTL-coated, galvanised locking mechanism

Notes

The Safe TRS curtain sider central stanchion has been tested in conjunction with the BG 1200/1700 slide-in profiles (as trolleys) in accordance with VDI 2700 for a breaking load of 1250 daN. However, the test certificate only covers a side loading height of 2350 mm to 2800 mm (in conjunction with slide-in profile BG 1200 mm) or up to 3050 mm (in conjunction with slide-in profile BG 1700 mm). Other (higher) assembly lengths do not comply with VDI 2700.
Please order stanchion bearings and accessories separately.

Attributes

Material Steel
Surface KTL-coated black

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
