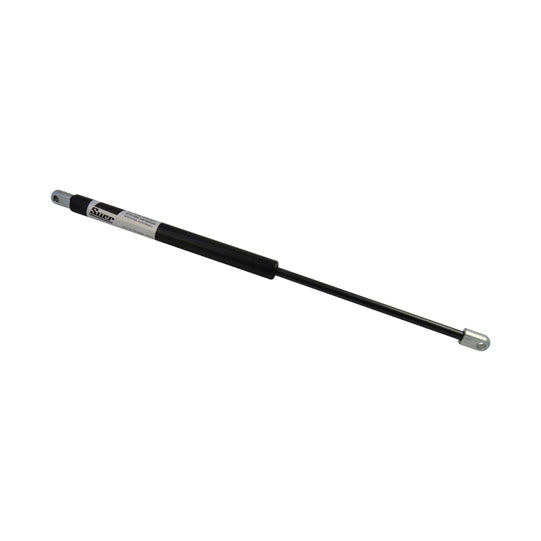

Gas spring 0-3-200-1/500N-305/505 A/A, spring f.ce 500N, stroke

Gas spring 0-3-200-1/500N-305/505 A/A, spring f.ce 500N, stroke

215141176

⚖️ 0,45 kg

Login view prices

Description

Gas spring 0-3-200-1/500N-305/505 A/A, damping when piston rod is extended, spring force 500 N, stroke 200 mm For use/installation in direct outdoor areas, we recommend our more corrosion-resistant gas springs with stainless steel piston rod and galvanised pressure tube (215141190 - 215141194).

Notes

Please order bearing shoes/bearing holders separately.

Attributes

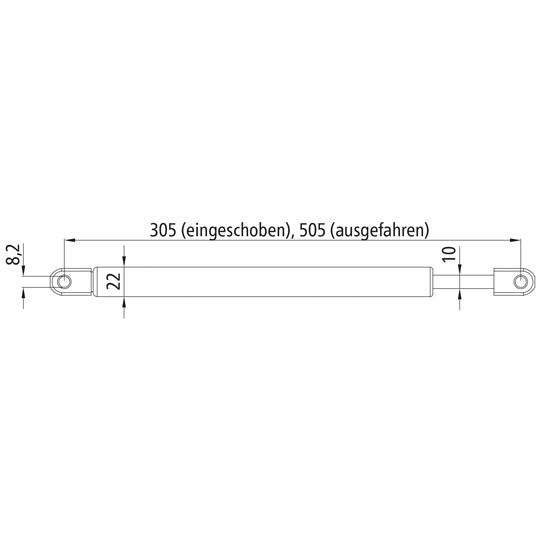

Length extended 505.0
Length retracted 305.0
Lift 200.0
Spring force 500.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
