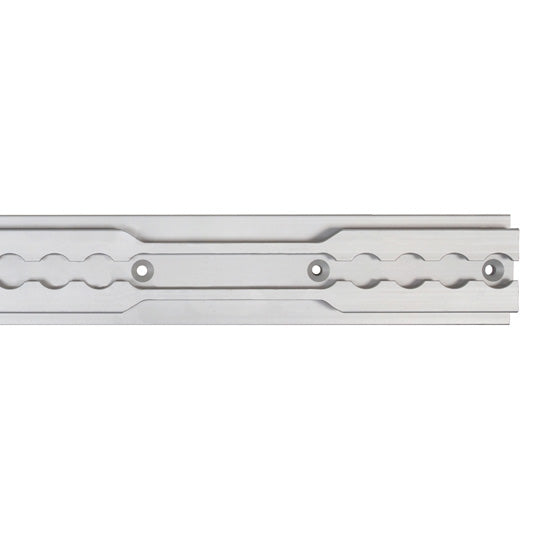

Guide rail 5001-AL, aluminum anodised, airline channel

Guide rail 5001-AL, aluminum anodised, airline channel

142138863

⚖️ 11,13 kg

Login view prices

Description

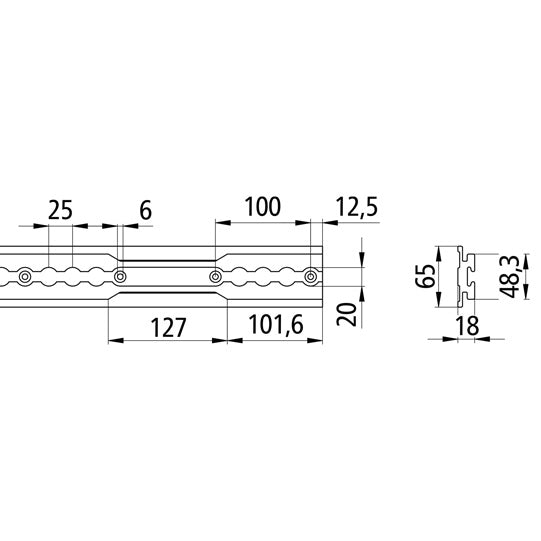

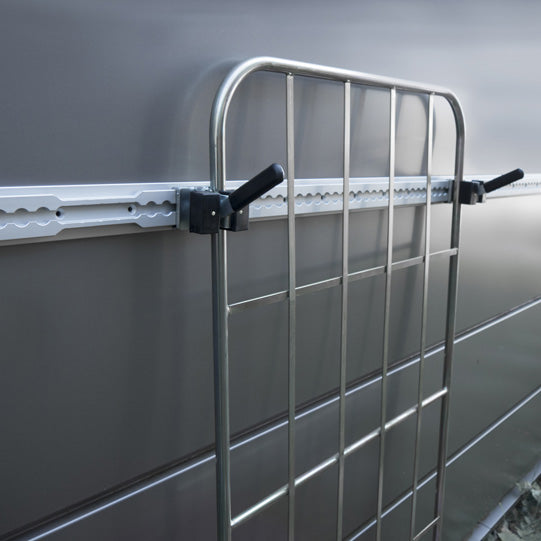

S-Line® guide rail 5001-AL, aluminum anodised, with airline channel, compatible with clamping slider for securing roller grille boxes, combination spigot Ø 19/24 mm and all airline end fittings, length 6000 mm

Attributes

Adhesive channel No
Countersunk holes Yes
Flat eyelet profile 0
Hole diameter 20.0
Installation area Horizontal wall
Lashing rail profile 0
Lc value at 45 grad angle 1000.0
Lc value at 90 grad angle 1500.0
Length 6000.0
Material Aluminum
Profile with airline system 0
Side wall lifting aid 0
Surface Anodized

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
