Hinge bearing, H871-K/24, screw-on, galvanised

Hinge bearing, H871-K/24, screw-on, galvanised

102111865

⚖️ 0,43 kg

Login view prices

Description

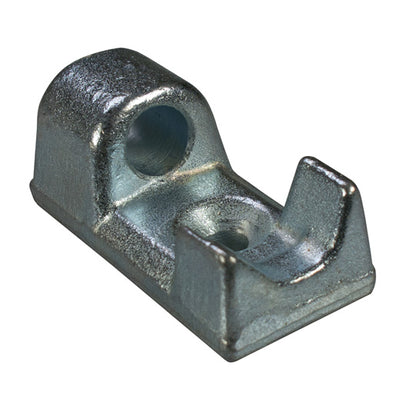

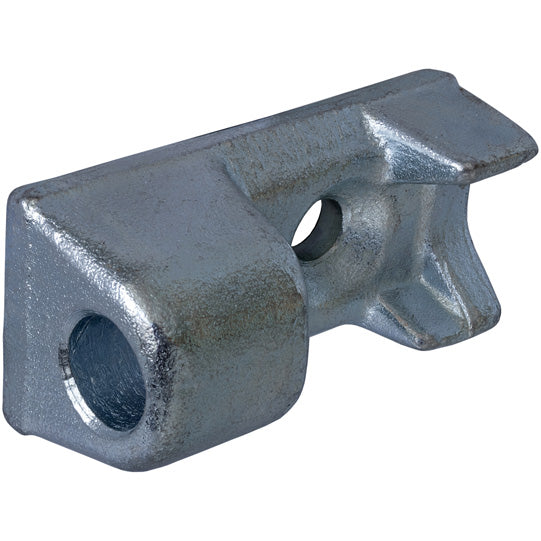

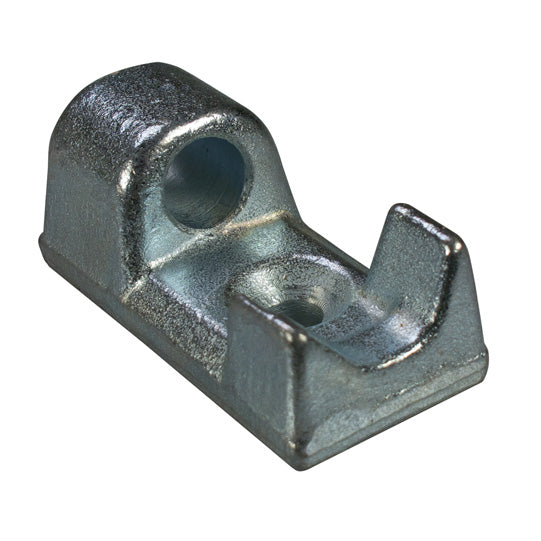

Hinge bearing H 871 - K/24, galvanised steel

Notes

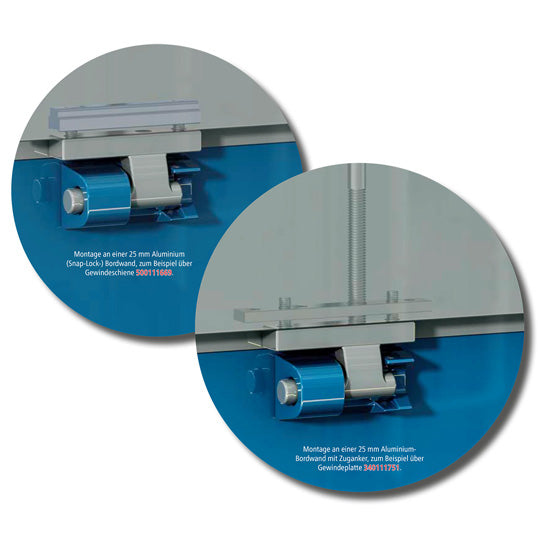

When folded down, the H 871 - K/24 safety hinge has a distance of 22 mm between the floor frame and the 25 mm aluminum side board. The H 871 - K/24 safety hinge is customs-certified, customs certificate no. Z 0720B-280/88-K 26. It is also considered accident-proof.

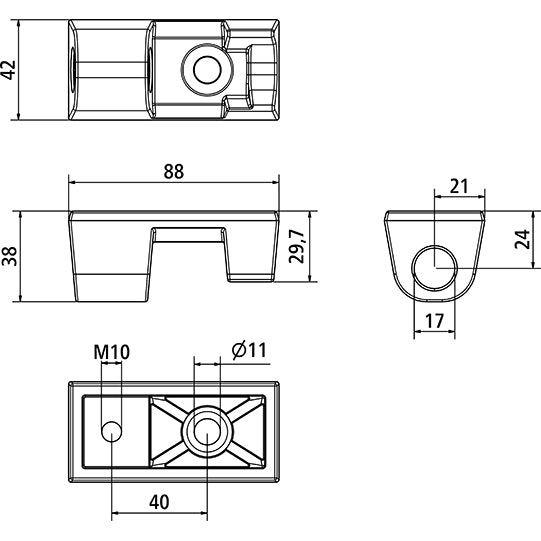

Attributes

Flat eyelet profile 0
Height 38.0
Hinge type Platform hinge
Hole durchmesser 17.0
Hole spacing 40.0
Lashing rail profile 0
Length 88.0
Material Steel
Profile with airline system 0
Screw hole durchmesser 11.0
Side wall lifting aid 0
Surface Galvanized
Thread M10
Width 42.0
