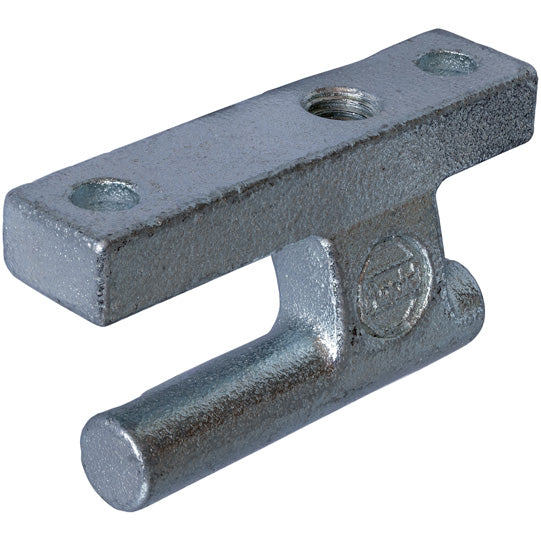

Hinge pin, H871-K/24, tie rod hole M12, galvanised

Hinge pin, H871-K/24, tie rod hole M12, galvanised

102111853

⚖️ 0,378 kg

Login view prices

Description

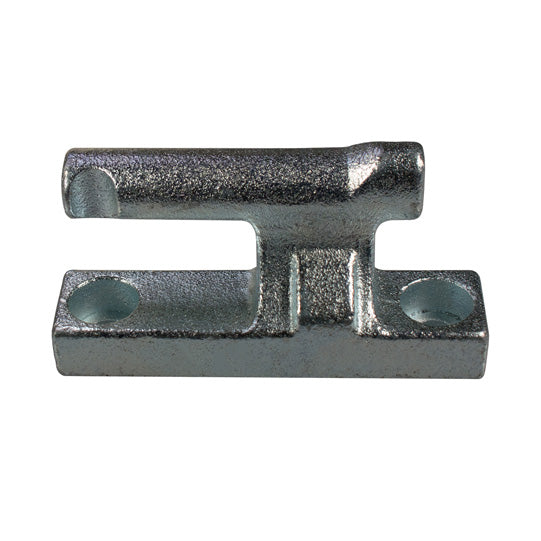

Hinge pin H 871 - K/24, with M12 thread for tie rod, galvanised steel

Notes

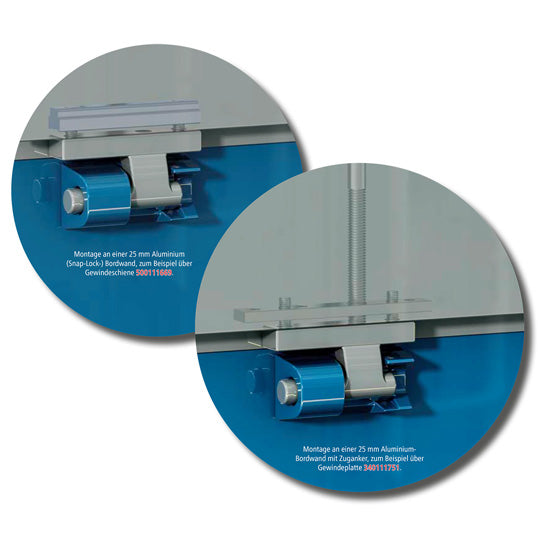

When folded down, the H 871 - K/24 safety hinge has a distance of 22 mm between the floor frame and the 25 mm aluminum side board. The H 871 - K/24 safety hinge is customs-certified, customs certificate no. Z 0720B-280/88-K 26. It is also considered accident-proof.

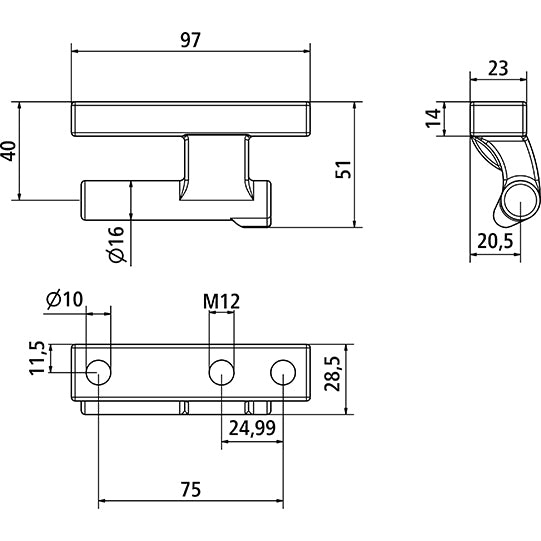

Attributes

Flat eyelet profile 0
Height 23.0
Hinge type Platform hinge
Hole spacing 75.0
Lashing rail profile 0
Length 97.0
Material Steel
Pin diameter 16.0
Profile with airline system 0
Screw hole durchmesser 10.0
Side wall lifting aid 0
Surface Galvanized
Thread M12
Width 52.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
