Hinge pin, TIR, tie rod hole M12, galvanised

Hinge pin, TIR, tie rod hole M12, galvanised

102111991

⚖️ 0,41 kg

Login view prices

Description

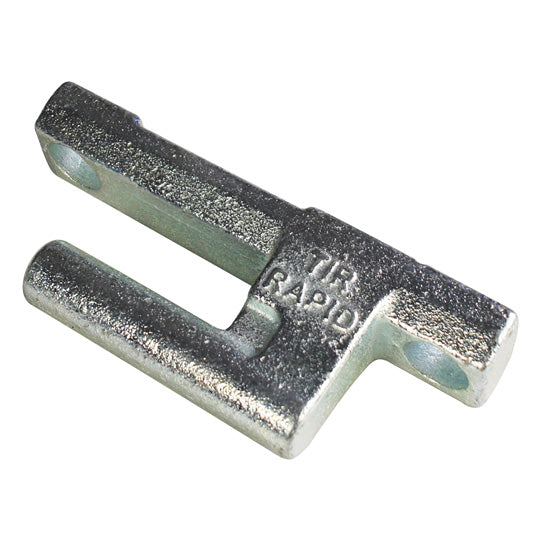

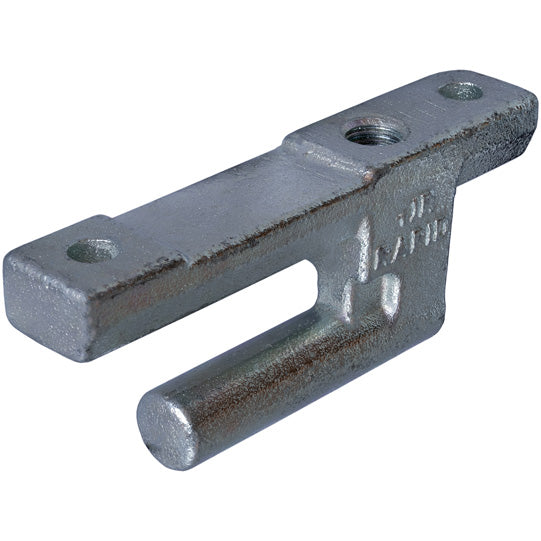

Hinge pin TIR, with M12 thread for tie rod, galvanised steel

Notes

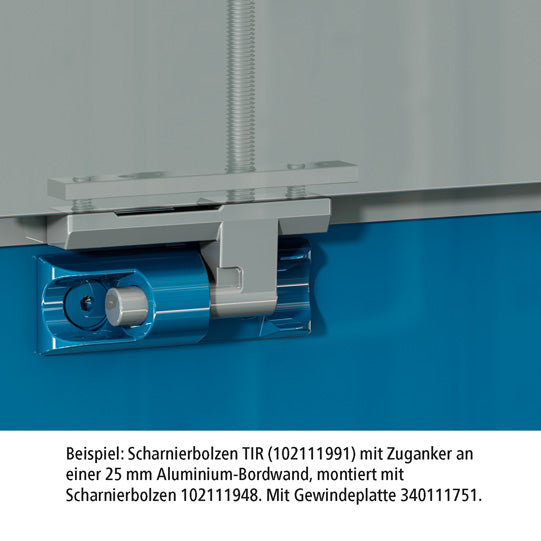

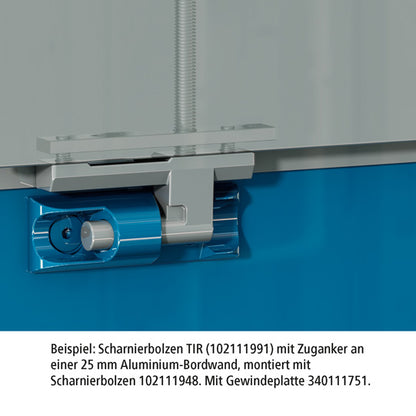

Hinge bearing for 25 and 30 mm aluminum drop sides.

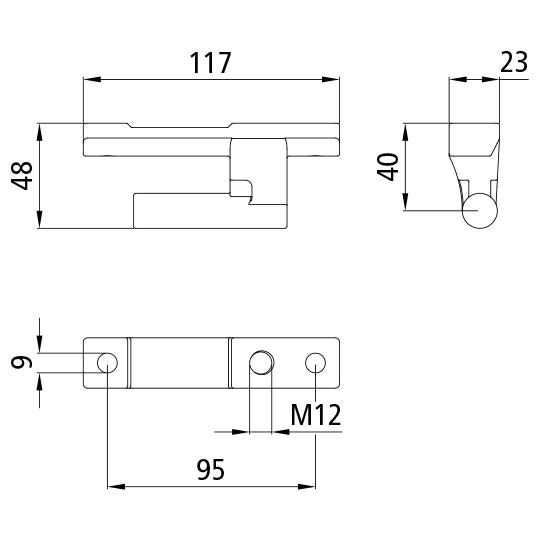

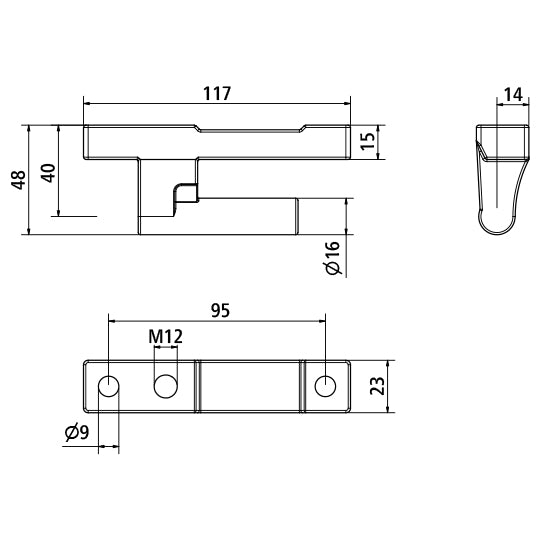

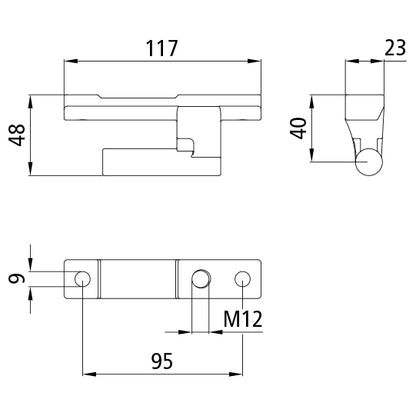

Attributes

Flat eyelet profile 0
Height 48.0
Hinge type Platform hinge
Hole spacing 95.0
Lashing rail profile 0
Length 117.0
Pin diameter 16.0
Profile with airline system 0
Screw hole durchmesser 9.0
Side wall lifting aid 0
Surface Galvanized
Thread M12
Width 23.0
