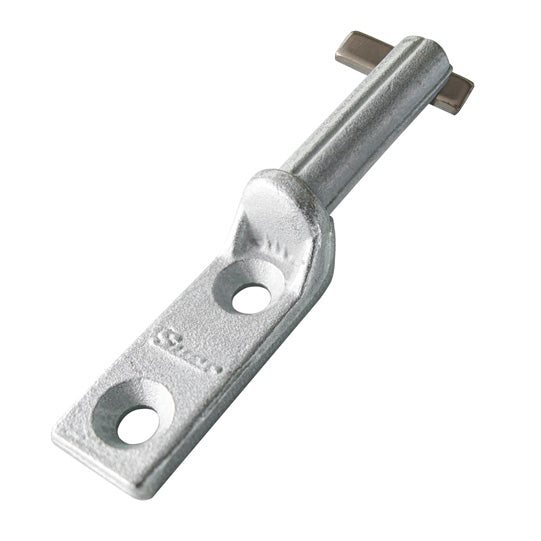

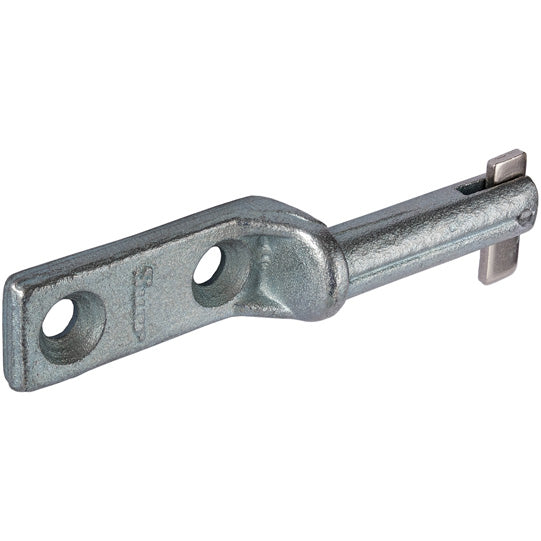

Hinge pin, with drop lug/tongue, galvanized steel

Hinge pin, with drop lug/tongue, galvanized steel

605646095

⚖️ 0,178 kg

Login view prices

Description

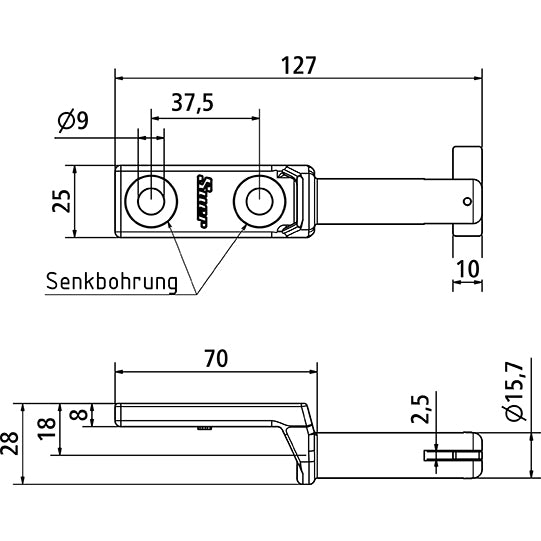

Hinge pin, with drop lug/tongue, 37.5 mm hole spacing, pin Ø 16 mm, galvanized steel

Notes

The hinge pin is used with our Cargotrail aluminum platform.
Hinge bearing for 25 and 30 mm aluminum side boards.

Attributes

Flat eyelet profile 0
Height 28.0
Hinge type Platform hinge
Lashing rail profile 0
Length 127.0
Material Steel
Pin diameter 15.7
Profile with airline system 0
Screw hole durchmesser 9.0
Side wall lifting aid 0
Surface Galvanized
Width 25.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
