HR mudguard H-PE 45.1025.17 angular SG, PP-EPDM

HR mudguard H-PE 45.1025.17 angular SG, PP-EPDM

181378003

⚖️ 3,1 kg

Login view prices

Description

Rear mudguard H-PE 45.1025.17 angular SG, PP-EPDM (polypropylene), black, injection moulded, centre section 540 mm, 450 × 1740 × 1025 × 540 mm (w × l × s × h)

Notes

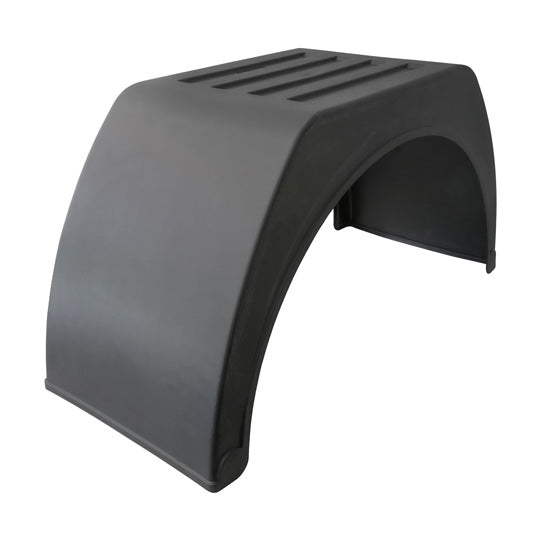

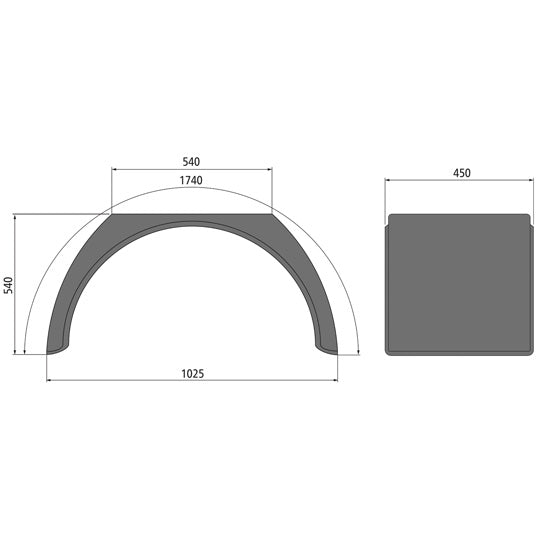

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 1025.0
Height 540.0
Length 1740.0
Material PP-EPDM black
Mounting hole pattern without
Mudguard console No
Splash guard No
Width 450.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
