HR mudguard H-PE 48.1000.17-IKK SG, PP-EPDM.

HR mudguard H-PE 48.1000.17-IKK SG, PP-EPDM.

181378118

⚖️ 4,3 kg

Login view prices

Description

Rear mudguard H-PE 48.1000.17-IKKSG,PP-EPDM (modified polypropylene), black, injection moulding, integrated mudguard bracket, infinitely adjustable, incl. mounting clamp for tube Ø 40 - 42 mm, 480 × 530 ×1700 ×1060×555 mm (w × r × l × s × h)

Notes

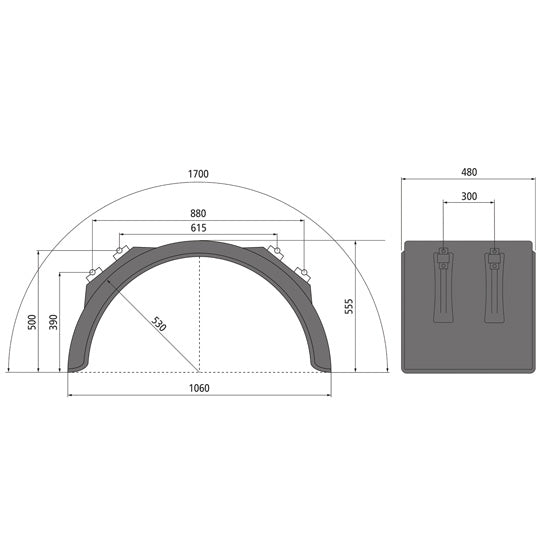

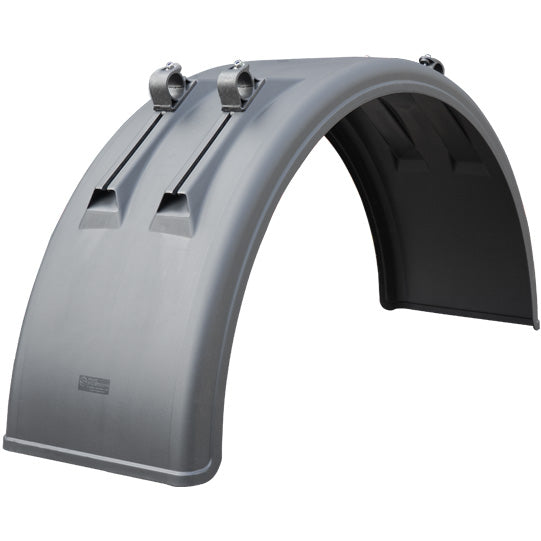

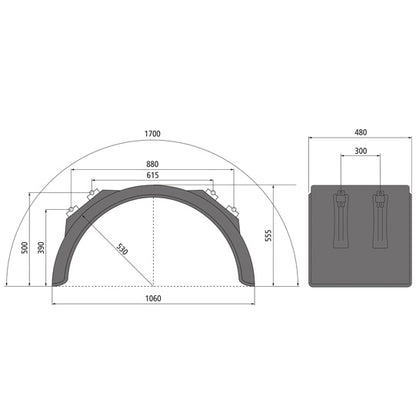

The item shown in the photo corresponds to the type and shape of the mudguard. Please refer to the drawing for the exact dimensions.

Attributes

Clamping dimension 1060.0
Console adjustment range 110.0
Height 555.0
Length 1700.0
Load tube diameter 40 - 42
Material PP-EPDM (polypropylene)
Mounting hole pattern without
Mudguard console Yes
Radius 530.0
Splash guard No
Width 480.0

Product safety

Note in accordance with Regulation (EU) 2023/988 on general product safety: The responsible economic operator within the meaning of the Regulation is Suer Nutzfahrzeugtechnik GmbH & Co. KG, Handelsstraße 5, 42929 Wermelskirchen, Germany. For safety-related enquiries or notifications in connection with our products, please contact: produktsicherheit@suer.de.
